SKU: Baileigh Industrial BA9-1013715
UPC: 731325445367
Weight: 200

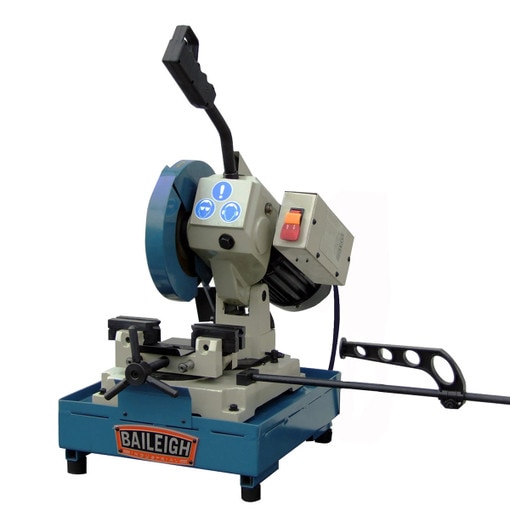

Baileigh Industrial BA9-1013715 Manually Operated Coldsaw CS-225M
Details
INCLUDES:
• (1) Manual Cold Saw
FEATURES:
• Accepts a 9” blade (included).
• It’s our smallest cold saw.
• 2.5” round tube maximum capacity at 90°.

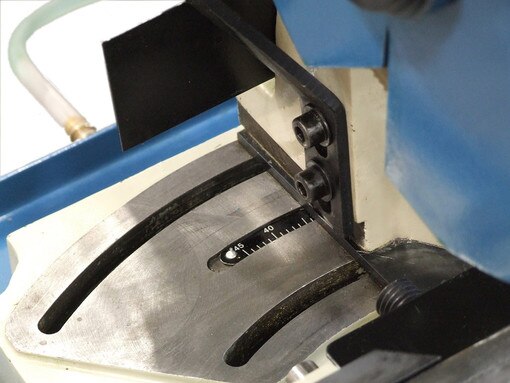

• Miters up to 45° to the left.
• Spins at 50 rpm, optimal for cutting many different kinds of materials.
• Cuts tubing, pipe, angle iron, solids, and much more.
• 1 hp motor runs on 110 volts, so you can plug it in anywhere.

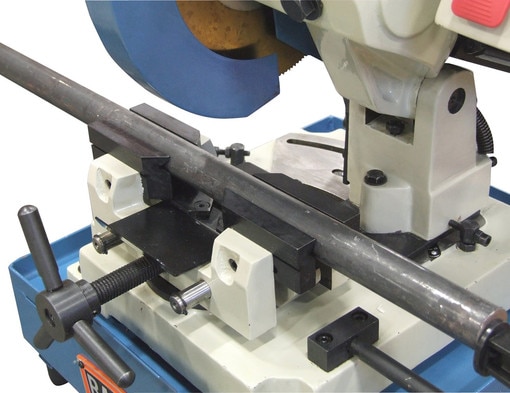

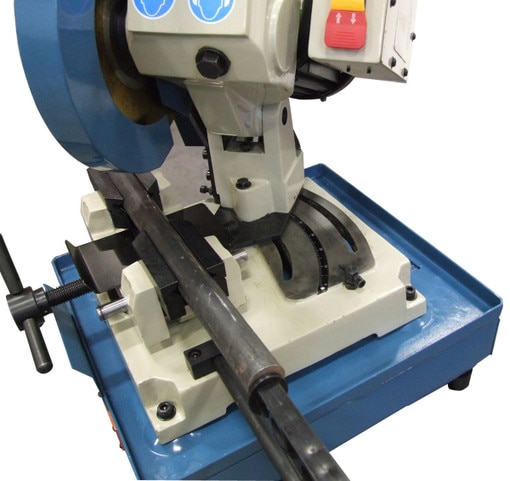

• Self-centering American-style vise keeps the material in the right position with respect to the blade.
• Vise grips the material on both sides of the blade for extra support.
• Direct drive gearbox (encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use.

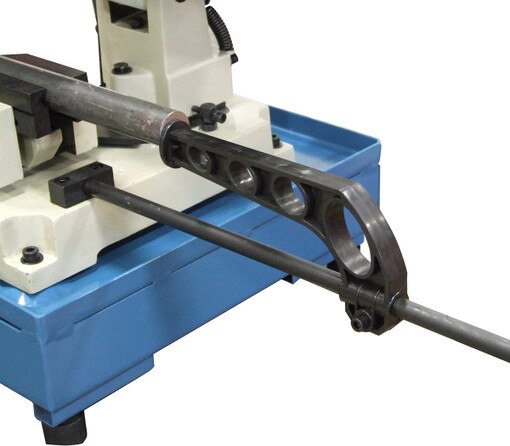

• Stop rod helps with repeatability for small production runs.
• Heavy-duty cast iron base stabilizes the machine, so that it can deliver accurate cuts for many years.

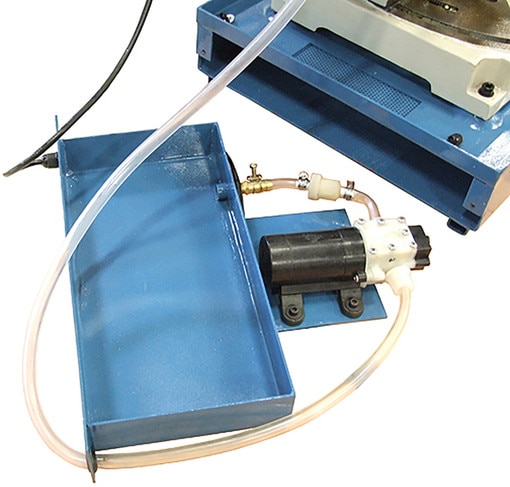

• Flood coolant system maintains high cut quality and helps both the saw and its blades last longer.
• Covered by a 1-year warranty.
SPECIFICATIONS:
• Max. Blade Diameter: 9"
• Operation: Manual
• Head Miter: 45° Left / 30° Right
• Round Solid at 45°: 1.5"
• Square Tube at 45°: 2" x 2"
• Round Tube at 45°: 2.125"
• Round Solid at 90°: 1.75"
• Square Tube at 90°: 2.25" x 2.25"
• Round Tube at 90°: 2.5"
• Coolant System: Yes
The CS-225M makes burr-free cuts like only a cold saw can. This portable benchtop saw has a cast base and a flood coolant system, often found only on more expensive models. The CS-225M cold cut saw from Baileigh Industrial is the perfect saw for any shop that has need for a light production or a portable saw that still provides great, mill-like cuts. Cold cut saws are great for cutting tubing, pipe, angle iron, solids and much more, the CS-225M is no exception. It has a 9” blade that allows for a maximum of 2-1/2” round capacity at 90 degrees, and has the ability to miter 45 degrees to the left. The CS-225M has a 1hp motor, powered by 110 volts, that spins at an optimal 50rpm for cutting many different kinds of materials.
• (1) Manual Cold Saw
FEATURES:
• Accepts a 9” blade (included).
• It’s our smallest cold saw.
• 2.5” round tube maximum capacity at 90°.
• Miters up to 45° to the left.
• Spins at 50 rpm, optimal for cutting many different kinds of materials.
• Cuts tubing, pipe, angle iron, solids, and much more.
• 1 hp motor runs on 110 volts, so you can plug it in anywhere.
• Self-centering American-style vise keeps the material in the right position with respect to the blade.
• Vise grips the material on both sides of the blade for extra support.
• Direct drive gearbox (encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use.
• Stop rod helps with repeatability for small production runs.
• Heavy-duty cast iron base stabilizes the machine, so that it can deliver accurate cuts for many years.
• Flood coolant system maintains high cut quality and helps both the saw and its blades last longer.
• Covered by a 1-year warranty.
SPECIFICATIONS:
• Max. Blade Diameter: 9"
• Operation: Manual
• Head Miter: 45° Left / 30° Right
• Round Solid at 45°: 1.5"
• Square Tube at 45°: 2" x 2"
• Round Tube at 45°: 2.125"
• Round Solid at 90°: 1.75"
• Square Tube at 90°: 2.25" x 2.25"
• Round Tube at 90°: 2.5"
• Coolant System: Yes
The CS-225M makes burr-free cuts like only a cold saw can. This portable benchtop saw has a cast base and a flood coolant system, often found only on more expensive models. The CS-225M cold cut saw from Baileigh Industrial is the perfect saw for any shop that has need for a light production or a portable saw that still provides great, mill-like cuts. Cold cut saws are great for cutting tubing, pipe, angle iron, solids and much more, the CS-225M is no exception. It has a 9” blade that allows for a maximum of 2-1/2” round capacity at 90 degrees, and has the ability to miter 45 degrees to the left. The CS-225M has a 1hp motor, powered by 110 volts, that spins at an optimal 50rpm for cutting many different kinds of materials.
