SKU: DBI Sala 2100181

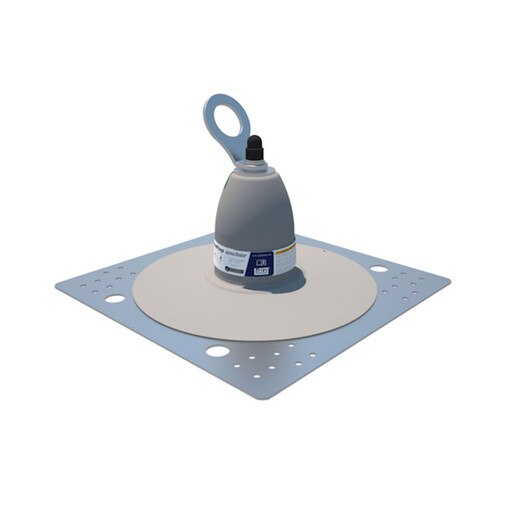

DBI Sala 2100181 Rooftop Tip Over For Counter Weight Roof Top Anchor
Details
INCLUDES:
• (1) Roof Anchor
• (1) Built-In Swiveling Anchorage Ring
FEATURES:
• Roof Top Anchor System
• L-Bolts
SPECIFICATIONS:
• Color: Silver
• Material: Sherardized Steel
• Standards: ANSI Z359.1, OSHA 1910.66 1926.502
• Weight Capacity: 310 lb.
• D-Ring Material: Forged Steel
• Depth: 10"
• Tensile Strength: 5000 lb.
• Attaches To: CDX Plywood, Corrugated Metal and Concrete Roof Decks
Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.
• (1) Roof Anchor
• (1) Built-In Swiveling Anchorage Ring
FEATURES:
• Roof Top Anchor System
• L-Bolts
SPECIFICATIONS:
• Color: Silver
• Material: Sherardized Steel
• Standards: ANSI Z359.1, OSHA 1910.66 1926.502
• Weight Capacity: 310 lb.
• D-Ring Material: Forged Steel
• Depth: 10"
• Tensile Strength: 5000 lb.
• Attaches To: CDX Plywood, Corrugated Metal and Concrete Roof Decks
Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.
