SKU: Fluke 700-IV

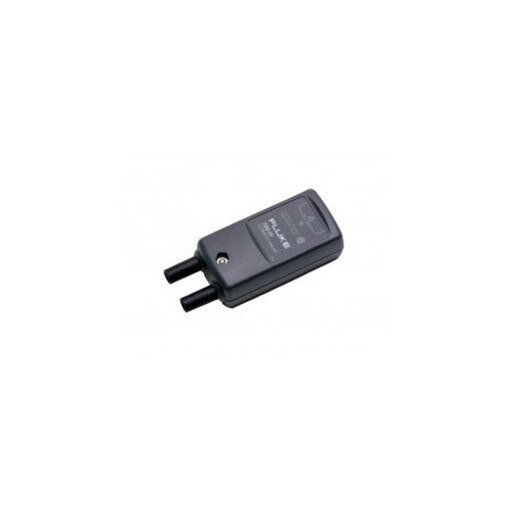

Fluke 700-IV Current Shunt
Details
INCLUDES:
• (1) Current Shunt
FEATURES:
• Can be used with accurate voltmeters for calibration purposes
• Can be used with Fluke 74X series in mA/mA applications (74X will display mA/mA automatically)
• Measure 0 - 55 mA through the calibrator’s V MEAS input jacks
SPECIFICATIONS:
• Unit Weight (KG): 0.091
• Unit Height (CM):5.1
• Unit Length (CM): 22.9
• Unit Width (CM): 12.7
• Basic Accuracy 0.025 percent (percent reading + floorspec)
• Output level(s) 10 mV/mA
• Maximum voltage 30 V
• Nominal current range 4 mA - 20 mA
• Maximum Non-Destructive Current 55 mA
Very accurate current shunt to use for verification and calibration of process control loops.
