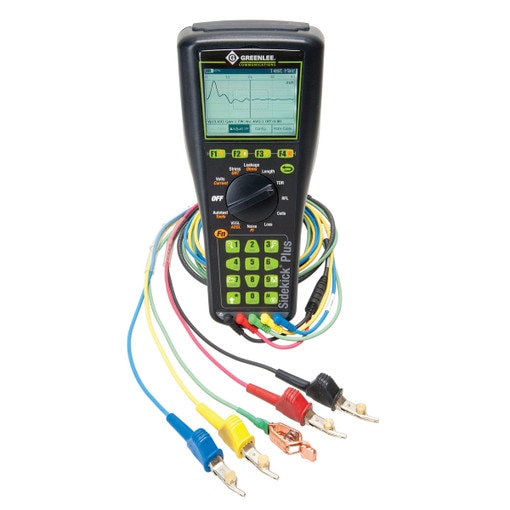

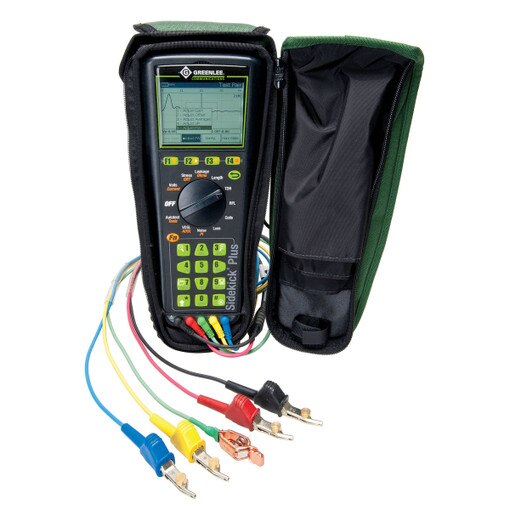

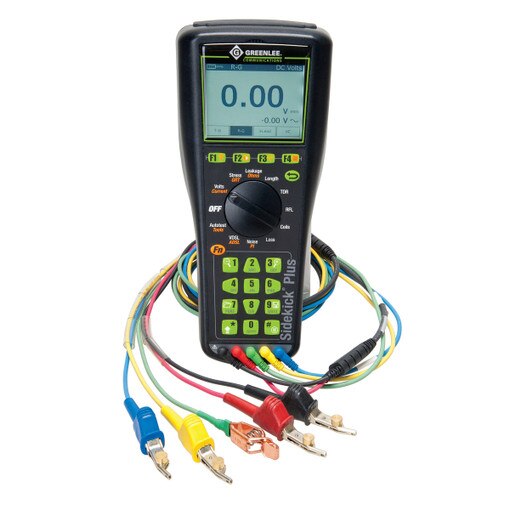

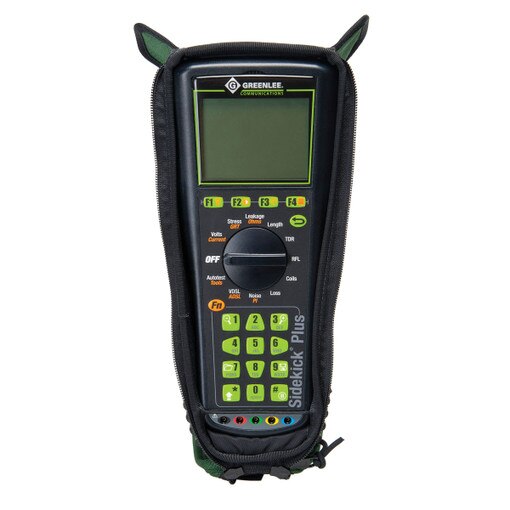

Tempo 1155-5001 Sidekick Plus Advanced Cable Maintenance Test Set

INCLUDES:
• (1) Test Set

FEATURES:
• Complete metering of voltage, current and resistance on copper cables.
• Patented stress balance test.
• Measurement of distance to opens.
• Line quality tests for noise, loss and power influence.
• Multimode wire tracing tone.
• Resistance fault locator (RFL) and calculator
• Powerful Time Domain Reflectometer (TDR).
• Built-in loudspeaker dialing with phone book memory.
• Auto-test mode with Pass/Fail.

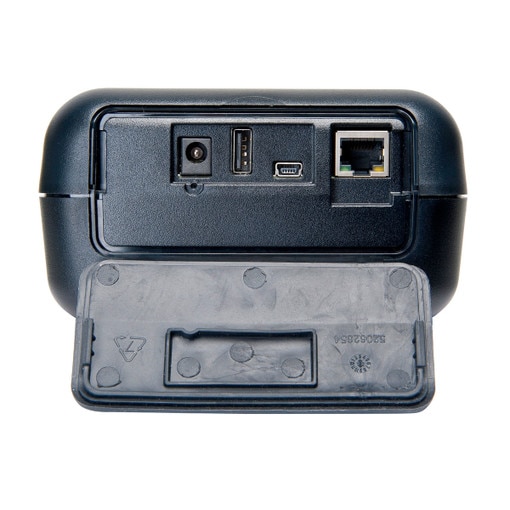

• USB download of test results and upload of software.
• Analog meter or digital display selectable.
• Big, easy-to-read display with backlight.
• Rechargeable (included) or replaceable batteries.
• Advanced cable diagnosis and troubleshooting in a single test set.
• Quick testing and fast repairs.
• Test data capture for sharing and records.
• Easy to learn, especially for Sidekick family users.
• Field upgradeable software.

SPECIFICATIONS:
• 5 Digit UPC: 10434
• Resistance: 100 megohm max
• Leakage: 100 megohm max
• DC Voltage: 0 to 300 Volts DC
• AC Voltage: 0 to 250 Vrms
• Stress Balance: 0 to 82 dBrnC
• RFL: 20 megohm, distance to 2 megohm
• TDR Range: 33 kilofeet
• Power: Rechargeable Battery Pack or Six AA batteries
