SKU: Greenlee 6906A-GPC
Greenlee 6906A-GPC UT10 10K lb Puller Package with Pull Connect Kit
Details
INCLUDES:
• (1) UT10 10K lb Puller Package

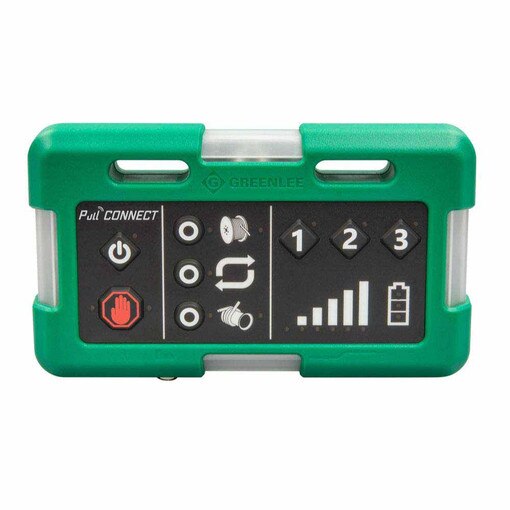

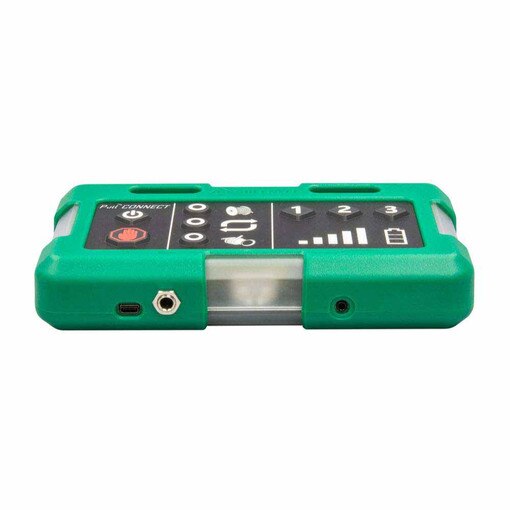

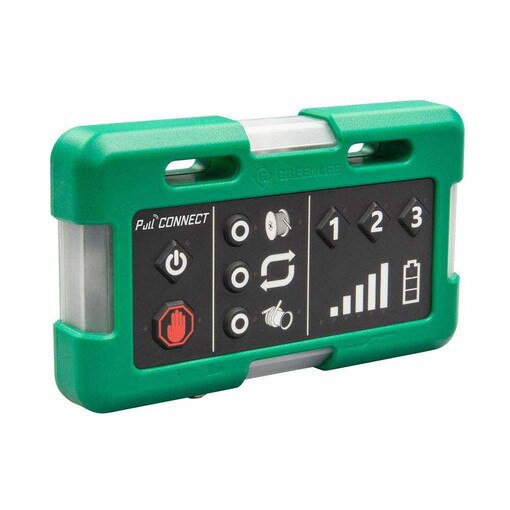

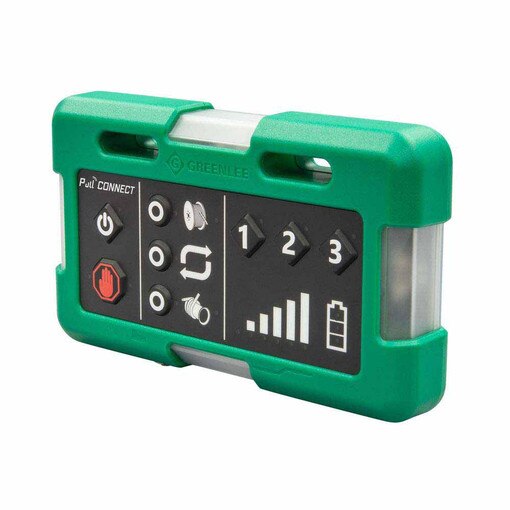

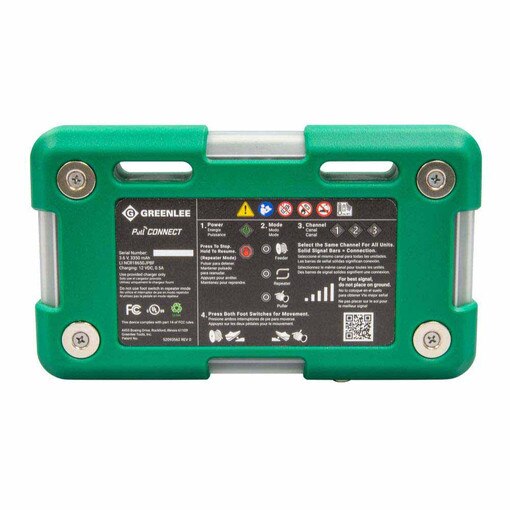

• (3) Pull Connect Units
• (2) Patch Cords
• (1) Foot Switch
• (1) Charger
• (1) Bag
FEATURES:
• Simple intuitive design allows users to focus on the pull
• Water resistant case and internal antenna protects from jobsite conditions and moisture
• Visual communiction LEDs ensure noise isn't a factor during pulls

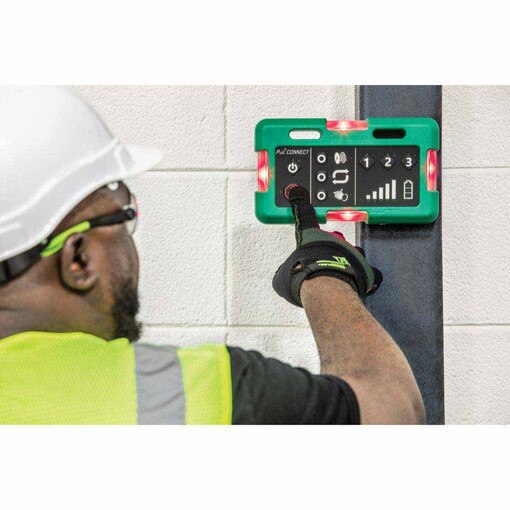

• Magnetic backing for quick mounting on pulling equipment, while holes provide versatility for attachments
• Quick stop button allows the pull to be stopped by anyone, at any location
• Two-speed motor allows for fast pulls up to 10,000 pounds
• On-board force gauge uses LED lights to display pulling force and speed
• Quick speed change from high speed to low-speed by simply double tapping foot pedal
• Quickly change from high-speed to low-speed by double-tapping the foot pedal
• Removable foot pedal for storage
SPECIFICATIONS:
• Pull Force (Range): Up to 10K, with 85 lbs of Tailing Force
• Voltage Rating: 120 VAC, 50/60 Hz
• Amperage Rating: 20A
• Speed: Up to 16 ft/min
• Motor Type: AC Induction Single Phase
• Max # of Repeaters: 2
• Type of Signal: Radio - 900 MHz, BLE - 2.4 GHz
• Range (Indoor): Indoor - 2000'
• Range (Outdoor): Outdoor - 1 mile
• Battery Life: 8 hours
• Material: Plastic/Rubber
• Color: Greeb/Black
• Min Operating Temperature: 5 F / -15 C
• Max Operating Temperature: 122 F / 50 C

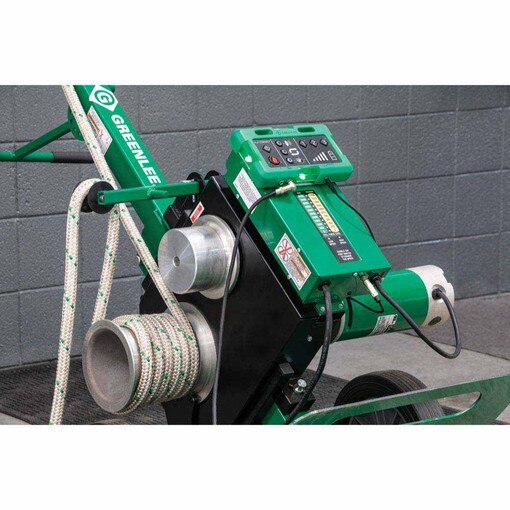

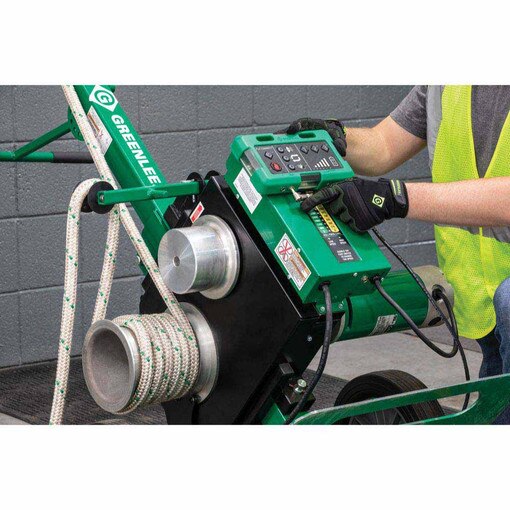

The Greenlee UT10 Ultra Tugger® Cable Puller is intended to be used to pull cable through conduit and in tray. The UT10 will develop 44.5 kN (10,000 lb) of pulling force. Refer to a Greenlee catalog for sheaves, pulling rope, and other cable pulling accessories to create an entire cable pulling system.
