SKU: Greenlee CM-1560

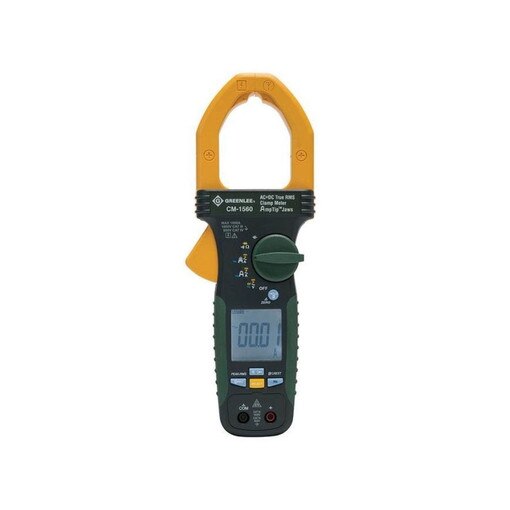

Greenlee CM-1560 AC/DC True RMS Clamp Meter, 1000V, 1000A
Details
INCLUDES:
• (1) Clamp Meter
• (2) 1.5V AA batteries
• (2) Test Leads (One red, One black)
• (1) Carrying Case
FEATURES:
• Measures AC+DC current
• AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
• Also measures DC voltage, resistance, capacitance and frequency
• Tests continuity and diodes
• Flashlight inside clamp jaw for easier work in dark locations
• Backlight & relative mode for added versatility
• Peak-RMS measures motor inrush current
• AmpTip™ increases accuracy on small wires and low current
• Two voltage detection modes - non-contact or using a single test lead
• Data hold
SPECIFICATIONS:
• Amperage Measurement: 60, 600, 1000 Amps AC+DC
• Display: LCD, 6000 Count
• Frequency Rating: Voltage: 50/60 Hz, Current: 40 to 400 Hz
• Jaw Opening: 2.0'' (51 mm)
• Measurement Category: CAT III 1000V, CAT IV 600V
• Replacement Part: TSG-3 test leads, TC-30 Carrying Case
• Resistance Measurement: 600, 6k, 60k Ohms
• Standard: CAT IV, C/US UL Listed, CE
• True Power: AC+DC True RMS
• Voltage Measurement: 600, 1000 Volts AC/DC
• Includes: (2) 1.5V AA batteries, test leads, carrying case
The Greenlee CM-1560 Clamp Meter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™, frequency, non-contact electric field (EF) detection, resistance, and capacitance. It also check diodes and verify continuity. This meter is designed to be placed on or removed from insulated or uninsulated conductors.
• (1) Clamp Meter
• (2) 1.5V AA batteries
• (2) Test Leads (One red, One black)
• (1) Carrying Case
FEATURES:
• Measures AC+DC current
• AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
• Also measures DC voltage, resistance, capacitance and frequency
• Tests continuity and diodes
• Flashlight inside clamp jaw for easier work in dark locations
• Backlight & relative mode for added versatility
• Peak-RMS measures motor inrush current
• AmpTip™ increases accuracy on small wires and low current
• Two voltage detection modes - non-contact or using a single test lead
• Data hold
SPECIFICATIONS:
• Amperage Measurement: 60, 600, 1000 Amps AC+DC
• Display: LCD, 6000 Count
• Frequency Rating: Voltage: 50/60 Hz, Current: 40 to 400 Hz
• Jaw Opening: 2.0'' (51 mm)
• Measurement Category: CAT III 1000V, CAT IV 600V
• Replacement Part: TSG-3 test leads, TC-30 Carrying Case
• Resistance Measurement: 600, 6k, 60k Ohms
• Standard: CAT IV, C/US UL Listed, CE
• True Power: AC+DC True RMS
• Voltage Measurement: 600, 1000 Volts AC/DC
• Includes: (2) 1.5V AA batteries, test leads, carrying case
The Greenlee CM-1560 Clamp Meter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™, frequency, non-contact electric field (EF) detection, resistance, and capacitance. It also check diodes and verify continuity. This meter is designed to be placed on or removed from insulated or uninsulated conductors.
