SKU: Greenlee CM-660

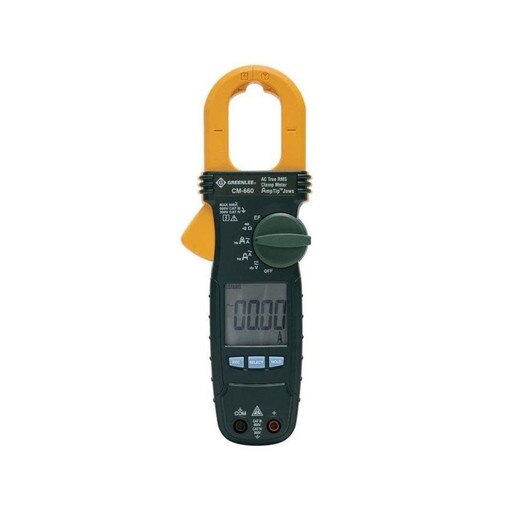

Greenlee CM-660 600 Amp AC True RMS Clamp Meter
Details
INCLUDES:
• (1) Meter
• (2) 1.5V AAA Batteries
• (1) Test Leads
• (1) Carrying Case
FEATURES:
• Measures AC current
• AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
• Also allows linemen to measure DC voltage, resistance and frequency
• Tests continuity and diodes
• AmpTip™ increases accuracy on small wires and low current
• Two voltage detection modes - non-contact or using a single test lead
• Data hold
• Measurement tool accurately records Maximum, Minimum, and Average readings
• Lifetime warranty
SPECIFICATIONS:
• Amperage Measurement: 60, 600 Amps AC
• Display: LCD, 6000 Count
• Frequency Rating: Voltage and AmpTip™ current: 50/60 Hz; high current: 50 to 400 Hz
• Jaw Opening: 1.18'' (30 mm)
• Measurement Category: CAT III 600V, CAT IV 300V
• Replacement Part: TSG-3 Test Leads, TC-10 Carrying Case
• Resistance Measurement: 600, 6k, 60k Ohms
• Standard: CAT III, C/US UL Listed, CE
• True Power: AC True RMS
• Voltage Measurement: 600 Volts AC/DC
Featuring simple controls and a convenient jaw clamp, this Greenlee CM-660 Digital Clamp Meter makes it easy to get accurate readings. It's designed for measuring AC current, plus AC/DC voltage, resistance and frequency. A data hold function is included.
