SKU: Greenlee CM-860

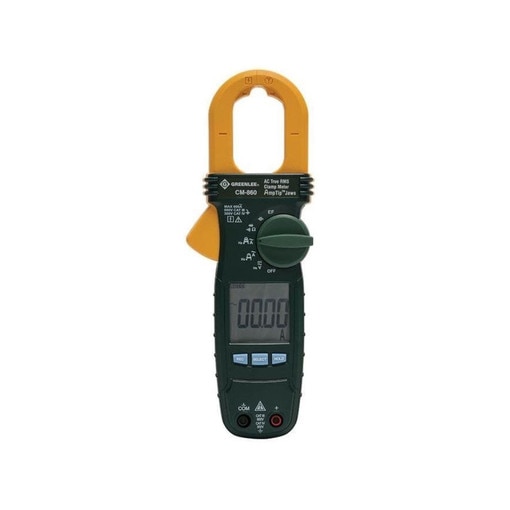

Greenlee CM-860 AC True RMS Clamp Meter, 600V, 600A
Details
INCLUDES:
• (1) Clamp Meter
• (2) 1.5V AAA Batteries
• (1) Test Leads
• (1) Carrying Case
FEATURES:
• Measures AC current
• AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
• Also measures DC voltage, resistance, capacitance and frequency
• Tests continuity and diodes
• Backlight & relative mode for added versatility
• AmpTip™ increases accuracy on small wires and low current
• Two voltage detection modes - non-contact or using a single test lead
• Data hold
• Recording of Maximum, Minimum, and Average readings
• Lifetime warranty
SPECIFICATIONS:
• Amperage Measurement: 60, 600 Amps AC
• Display: LCD, 6000 Count
• Frequency Rating: Voltage and AmpTip Current: 50/60 Hz. High Current: 50 to400 Hz
• Jaw Opening: 1.18'' (30 mm)
• Measurement Category: CAT III 600V, CAT IV 300V
• Replacement Part: TSG-3 Test Leads, TC-10 Carrying Case
• Resistance Measurement: 600, 6k, 60k Ohms
• Standard: CAT III, C/US UL Listed, CE
• True Power: AC True RMS
• Voltage Measurement: 600 Volts AC/DC
• Includes: (2) 1.5V AAA batteries, test leads, carrying case
Equipped with AmpTip™ technology, the Greenlee CM-860 AC Current Clamp Meter provides fast, accurate readings. In addition to AC current, it can also measure DC voltage, resistance, capacitance and frequency, and can test continuity and diodes.
