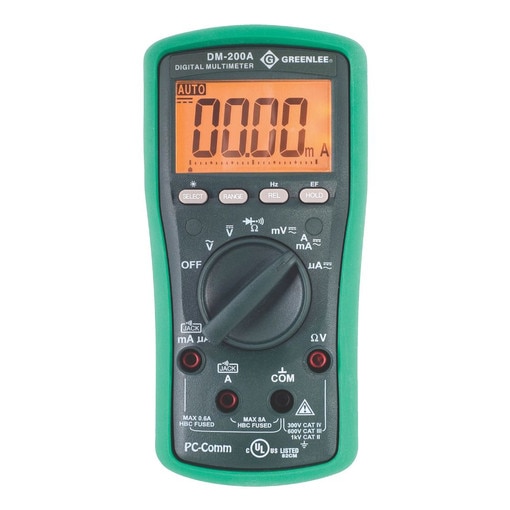

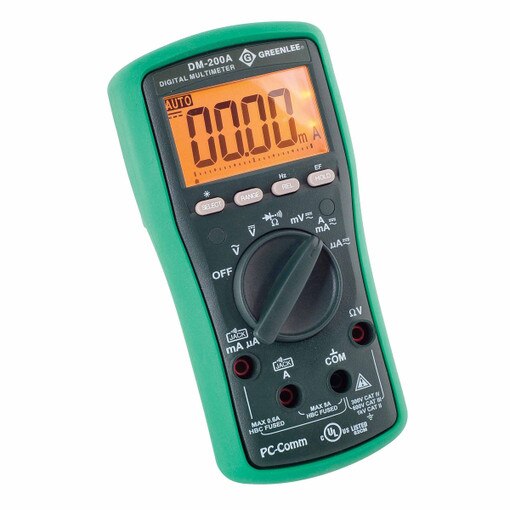

Greenlee DM-200A 6,000-Count Digital Multimeter, 1000V, 8A (DM-200A)

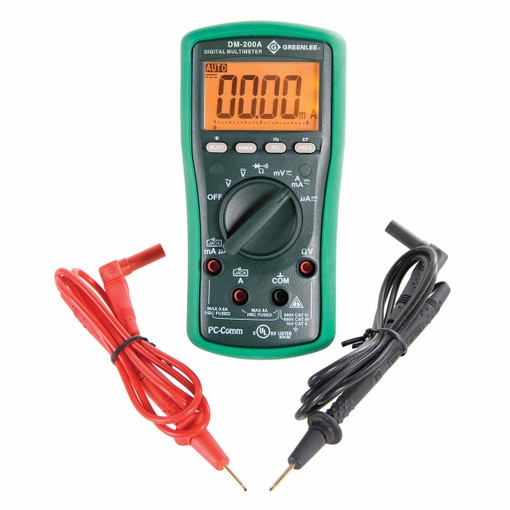

INCLUDES:
• (1) Multimeter
• (2) 1.5V AAA Batteries
• (1) Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max)
• (1) Test leads
• (1) ProtectiveBoot

FEATURES:
• Measures voltage, current, resistance and frequency
• Tests continuity and diodes
• Backlit LCD with 6,000 count display
• Two voltage detection modes - non-contact or using a single test lead
• BeepJack warns when test leads are incorrectly inserted in current measurement terminals
• Automatic and manual range selection
• Relative offset mode to see changes in measurements
• Data hold
• Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
• Lifetime Limited Warranty

SPECIFICATIONS:
• Amperage Measurement: 600, 6000?A; 60, 600mA; 6, 8A
• Battery: (2) 1.5 V AAA
• Capacitance: 60, 600 nF; 6, 60, 600, 3000?F
• Display: Backlit LCD with 6,000 Count
• Frequency Measurement: 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
• Measurement Category: CAT IV 300 V, CAT III 600 V, CAT II 1000 V
• Replacement Part: TSG-3 Sure-Grip Test Leads
• Resistance Measurement: 600 ?; 6, 60, 600 k?; 6, 60 M?
• Standard: CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
• Sub Brand: ESM
• Temperature Rating: K Type, -58 to 1832°F (-50 To 1000°C)
• Type: Digital
• Voltage Measurement: 60, 600 mV; 6, 60, 600, 1000V


Measures voltage, current, resistance and frequency
