SKU: Greenlee DM-860A

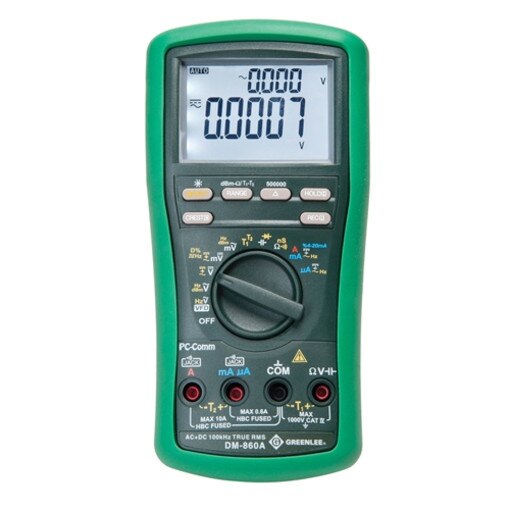

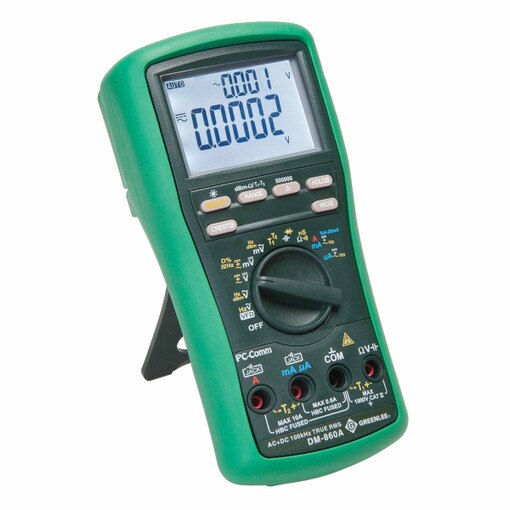

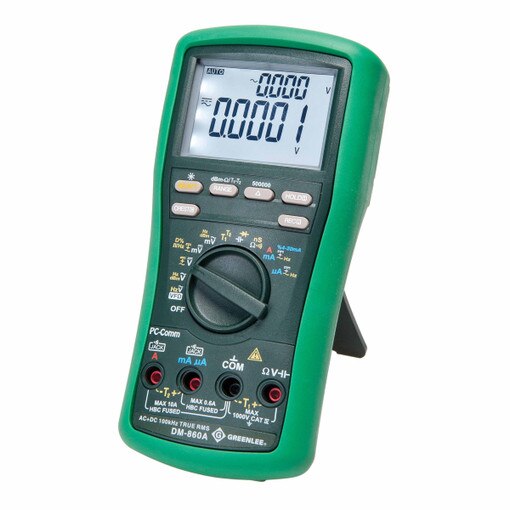

Greenlee DM-860A Industrial Digital Multimeter
Details

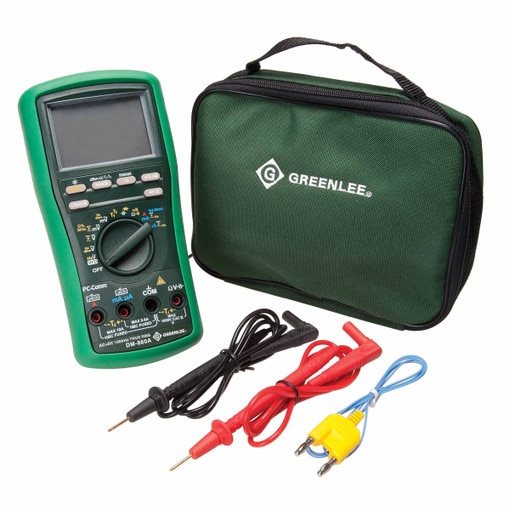

INCLUDES:
• 9V Battery
• Bead Temperature Probe
• Test Leads
• Protective Boot
• Carrying Case
FEATURES:
• AC+DC True RMS, 50,000-count dual display for greater accuracy.
• VFD (variable frequency drive) voltage and frequency functions for accurate readings on noisy drive waveforms.
• Beep-Jack™ audible and visual input alert helps avoid blown fuses or damage to meter.
• 41-segment analog bar graph makes it easy to view quick changes.
• Record max, min, avg, and max-min and data hold.
• Crest capture (peak hold) max and min readings.
• Relative offset display mode makes monitoring relative measurement changes simple.
• Performs resistance, conductance, frequency, duty cycle, temperature and capacitance measurements, plus diode and continuity tests.
• Dual temperature measurement up to 1832°F/1000°C using type K thermocouples.
• Autoranging for convenient operation – and to save you time.
• Bright, backlit display is easy to read under any light condition.
• Intelligent Auto Power Off conserves battery life but will not turn meter off during measurements.
• Wide AC bandwidth – to 100 kHz for voltage and 20 kHz for current.
• USB interface using optional DMSC-9U cable and software, allows connection to a PC for extended measurement capability.
• Lifetime Limited Warranty.
SPECIFICATIONS:
• 5 Digit UPC: 12938
• Voltage Measurement: 500.00mV; 5.0000, 50.000, 500.00, 1000.0V
• DC Voltage Measurement: 500,000 counts mode: 500.000mV; 5.00000, 50.0000, 500.000, 1000.00V
• Amperage Measurement: 500.00, 5000.0µA; 50.000, 500.00mA; 5.0000, 10.000A
• Resistance: 500.00?; 5.0000, 50.000, 500.00k?; 5.0000, 50.000M?
• Conductance: 99.99 nS
• Capacitance: 50.00; 500.0nF; 5.000, 50.00, 500.0µF; 5.000, 25.00 mF
• Frequency: 5Hz-200kHz sine wave; 5Hz-2MHz logic level square wave
• Temperature: K type, -58°F to 1832°F (-50°C to 1000°C)
• 9V Battery
• Bead Temperature Probe
• Test Leads
• Protective Boot
• Carrying Case
FEATURES:
• AC+DC True RMS, 50,000-count dual display for greater accuracy.
• VFD (variable frequency drive) voltage and frequency functions for accurate readings on noisy drive waveforms.
• Beep-Jack™ audible and visual input alert helps avoid blown fuses or damage to meter.
• 41-segment analog bar graph makes it easy to view quick changes.
• Record max, min, avg, and max-min and data hold.
• Crest capture (peak hold) max and min readings.
• Relative offset display mode makes monitoring relative measurement changes simple.
• Performs resistance, conductance, frequency, duty cycle, temperature and capacitance measurements, plus diode and continuity tests.
• Dual temperature measurement up to 1832°F/1000°C using type K thermocouples.
• Autoranging for convenient operation – and to save you time.
• Bright, backlit display is easy to read under any light condition.
• Intelligent Auto Power Off conserves battery life but will not turn meter off during measurements.
• Wide AC bandwidth – to 100 kHz for voltage and 20 kHz for current.
• USB interface using optional DMSC-9U cable and software, allows connection to a PC for extended measurement capability.
• Lifetime Limited Warranty.
SPECIFICATIONS:
• 5 Digit UPC: 12938
• Voltage Measurement: 500.00mV; 5.0000, 50.000, 500.00, 1000.0V
• DC Voltage Measurement: 500,000 counts mode: 500.000mV; 5.00000, 50.0000, 500.000, 1000.00V
• Amperage Measurement: 500.00, 5000.0µA; 50.000, 500.00mA; 5.0000, 10.000A
• Resistance: 500.00?; 5.0000, 50.000, 500.00k?; 5.0000, 50.000M?
• Conductance: 99.99 nS
• Capacitance: 50.00; 500.0nF; 5.000, 50.00, 500.0µF; 5.000, 25.00 mF
• Frequency: 5Hz-200kHz sine wave; 5Hz-2MHz logic level square wave
• Temperature: K type, -58°F to 1832°F (-50°C to 1000°C)
