SKU: Greenlee DVI-100
Greenlee DVI-100 Digital Voltage Indicator,Oh Probe
Details
Greenlee DVI-100 Description
The direct-contact voltage indicator reads line-to-ground voltage measurements up to 100 kV. It features a large LED display and an audible alarm when voltage detection reaches above 100 VAC.

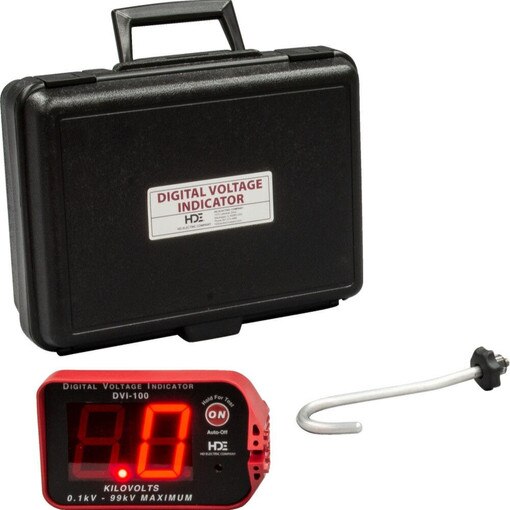

Greenlee DVI-100 Includes

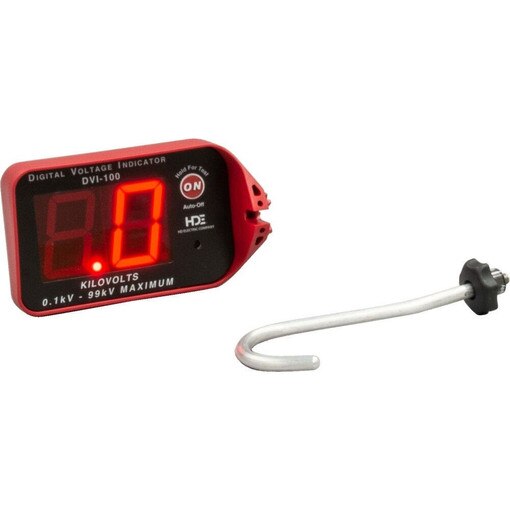

- (1) Indicator
- (1) Probe
- (1) Case
Greenlee DVI-100 Features
- Measures voltage up to 99kv line-to-ground
- Voltage readout distinguishes between nominal and induced voltages
- Audible indication when voltage is detected
- Test Point mode available (DVI-100T model)
- Auto-shutoff and low battery indication features
- Versatile for overhead and underground applications
Greenlee DVI-100 Specifications
| Type: | Digital Voltage Indicator |
| Voltage Rating: | 100V - 99kV Line-to-Ground |
| Accuracy: | Laboratory Calibrated to +/-3%. Typical Overhead Line in Compact Overhead Three Phase +/-10%. Other Applications Up to +/-25% |
| Display: | LED Display |
| Frequency Rating: | AC 60Hz (50Hz Model Available) |
| Operating Temperature: | -20°F to +140°F (-29°C to +60°C) |
| Dimensions: | 4.25"H x 7"W x 4.5"D (11 cm x 18 cm x 11 cm) |
