SKU: Greenlee DVI-500T/K02
Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2
Details

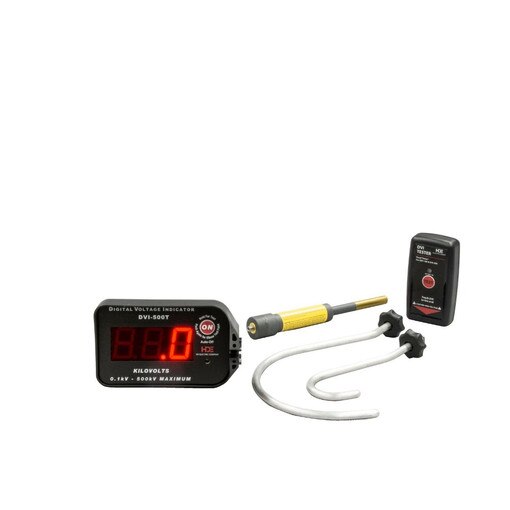

INCLUDES:
• (1) DVI-500
• (1) HP-DVI-2 2" Overhead Hook Probe
• (1) HP-DVI-6 6" Overhead Hook Probe
• (1) IEP-DVI-5 Underground Bushing Probe
• (1) PT-DVI Proof Tester Proof Tester
• (1) CS-DVI Plastic Case
FEATURES:
• Measures voltage up to 500kv line-to-ground
• Voltage readout distinguishes between nominal and induced voltages
• Audible indication when voltage is detected
• Test Point mode
• Auto-shutoff and low battery indication features

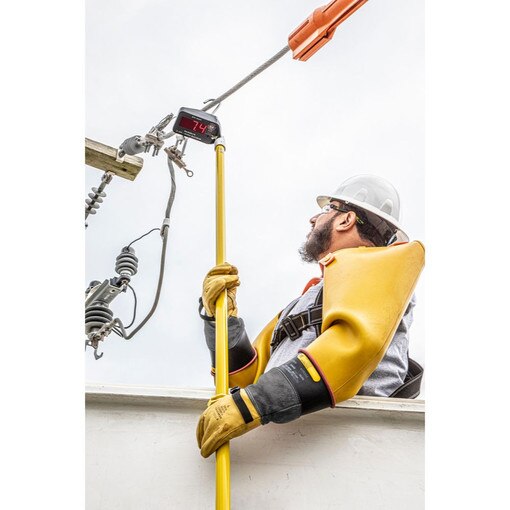

• Versatile for overhead and underground applications
SPECIFICATIONS:
• Type: Digital Voltage Indicator
• Model: DVI-500T
• Voltage Rating: 100V - 500kV Line-to-Ground
• Accuracy: Laboratory Calibrated to +/-3%. Typical Overhead Line in Compact Overhead Three Phase +/-10%. Other Applications up to +/-25%
• Display: LED Display
• Operating Temperature: -20°F to +140°F (-29°C to +60°C)
• Dimensions: 4.25"H x 7"W x 4.5"D (11 cm x 18 cm x 11 cm)
• Frequency Rating: AC 60Hz (50Hz model available)
• Sub Brand: HDE
• Included: DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case

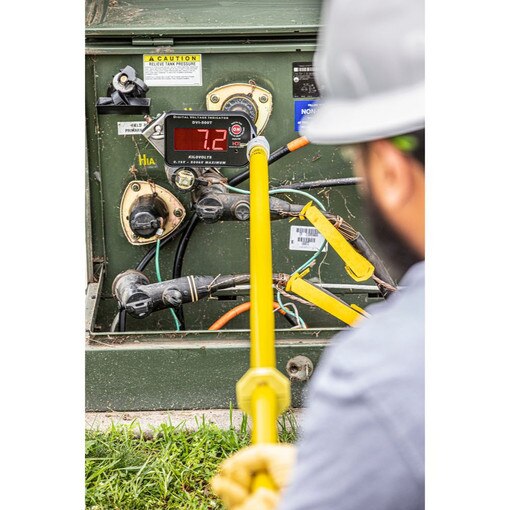

Indicates Voltage up to 500kV Kit No range selector switch or settings required Audible indication when voltage is detected Measure elbow test points with the DVI-500T Large LED display indicates the line-to-ground voltage level Display is easy to read in bright or dark conditions Voltage readout allows the user to distinguish between nominal and induced voltages Built-in universal spline for standard hot stick attachment Built-in self-test to verify proper operation Auto shutoff with low battery function For use on system voltages up to 800kV (reads up to 500kV line-to-ground) Powered by a field-replaceable 9V lithium or alkaline battery Compact, rugged and lightweight polycarbonate housing Kits are available, contact factory for details.
