SKU: Greenlee EK410LXB

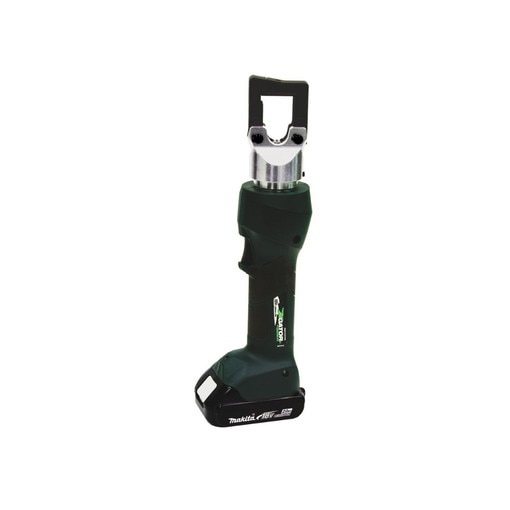

Greenlee EK410LXB Crimper, 4T Li, Std, Bare

Details

Greenlee EK410LXB Description

The durable Greenlee 4 Ton Crimper, Li-Ion, standard, Bare (EK410LXB) is equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. It features an LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Greenlee EK410LXB Includes

  • (1) Crimper

Greenlee EK410LXB Features

  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • LED light provides the operator with the battery charge and tool maintenance status
  • In Line tool style is light weight and very easy to control
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Used with Greenlee KC4, KA4 and KD4 crimping dies
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger

Greenlee EK410LXB Specifications

Type:Die Style Crimper
Application:4 Ton Crimping
Wire Size:8 AWG - 300 kcmil Cu, 8 AWG - 2/0 kcmil Al
Overall Length:13.25" (337mm)
Crimping Force:7900 lbs (35 kN)
Crimping Capacity:300 kcmil (MCM) Copper, 2/0 AWG Al
Connector Type:Color-Coded Lugs and Splices
Handle Type:In-Line Style with Over Molded Rubber Grip
