SKU: Greenlee EK425LXDB

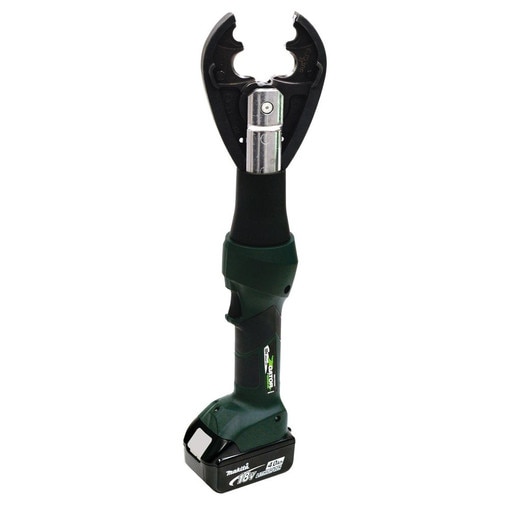

Greenlee EK425LXDB 6 Ton Crimper with CJD3 Jaw, Li-Ion, Standard, Bare Tool
Details
INCLUDES:
• (1) Crimping Tool
• (1) CJD3 Jaw
FEATURES:
• The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
• The crimping jaws open wide to fit easily over connectors
• In-line tool style is lightweight and very easy to control
• To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
• The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
• When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
• It is then ready to make the next crimp
• And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications
SPECIFICATIONS:
• Type: Die Style Crimper
• Wire Size: Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
• Crimping Force: 12000 lbs. (53 kN)
• Crimping Capacity: Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
• Connector Type: Service Entrance Connectors, H-Taps, Tension Splices, Jumper Splices, Stirrups, Color Coded Lugs & Splices
• Handle Type: In-Line Style with Over Molded Rubber Grip
• Standard: C/US UL Listed
• Application: 6 Ton Crimping
• Overall Length: 18.5" (470mm)
• Head Rotation: 350°
• Battery: 18V 4.0Ah Li-ion
• Cycle Time: ~4 Seconds
• Width: 2.95"
• Height: 4.92"
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
