SKU: Greenlee EK425LXDO12

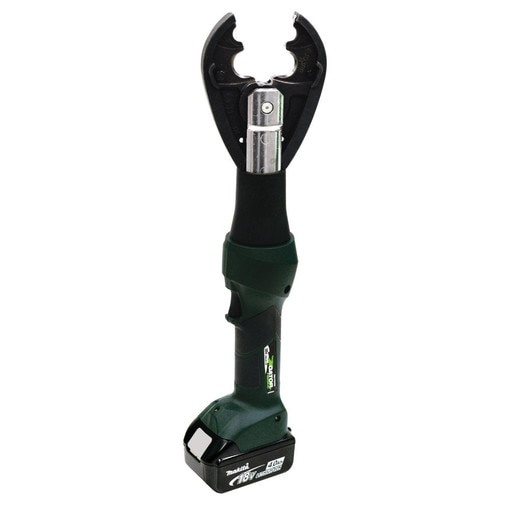

Greenlee EK425LXDO12 6 Ton Crimper, Li-Ion, Standard, CJD3O, 12V
Details
INCLUDES:
• (1) Crimping Tool
• (1) CJD30 Jaw
• (2) 4.0Ah Batteries
• (1) 12V Charger
• (1) Case
FEATURES:
• The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
• The crimping jaws open wide to fit easily over connectors
• In-line tool style is lightweight and very easy to control
• To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
• The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
• When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
• It is then ready to make the next crimp
• And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
SPECIFICATIONS:
• Type: Die Style Crimper
• Application: 6 Ton Crimping
• Standard: C/US UL Listed
• Wire Size: Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
• Overall Length: 18.5" (470mm)
• Crimping Force: 12000 lbs (53 kN)
• Crimping Capacity: Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
• Connector Type: Service Entrance Connectors, H-Taps, Tension Splices, Jumper Splices, Stirrups, Color Coded Lugs & Splices
• Handle Type: In-Line Style with Over Molded Rubber Grip
• Sub Brand: Gator
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
