SKU: Greenlee EK6ATLX11

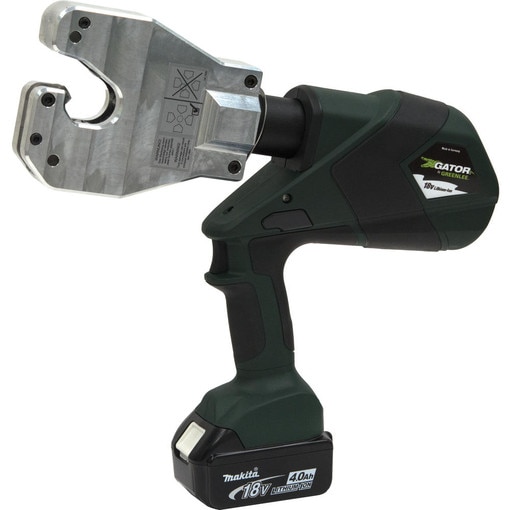

Greenlee EK6ATLX11 6 Ton Crimper Quad, Li-Ion, Standard, 120V
Details
INCLUDES:
• (1) 6 Ton Quad Point Crimper, Open Face
• (1) 120V Charger
• (2) 4.0 Ah Batteries
FEATURES:
• Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350°
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Utilizes four indentors to make the crimp
• Flip-top style uses a pull pin to open head for easy removal from the connector
• U.S. Patents #6,206,663 and #6,065,326
SPECIFICATIONS:
• Sub Brand: Gator
• Type: Dieless style crimper
• Application: 6 Ton Crimping
• Standard: C/US UL Listed
• Wire Size: 6 AWG - 500 kcmil Cu, 6 AWG - 400 kcmil Al
• Overall Length: 14 IN (355mm)
• Crimping Force: 12,400 lbs. (55 kN)
• Crimping Capacity: 500 kcmil (MCM) Copper, 400 kcmil (MCM) Al
• Connector Type: Color-coded lugs and splices
• Handle Type: Pistol Style with over molded rubber grip
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
