SKU: Greenlee EK6FTLX11

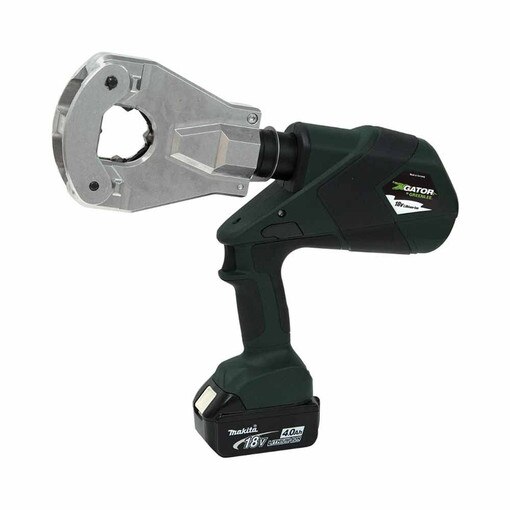

Greenlee EK6FTLX11 6 Ton Crimper Quad Flip, Li-Ion, Standard, 120V
Details
INCLUDES:
• (1) Crimping Tool
• (2) 4.0 Ah Batteries
• (1) Charger
FEATURES:
• 2-stage hydraulic system provides fast advance and power speeds, saving time
• Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• Crimping head rotates 350 deg
• Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
• Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
• Flip-top style uses a pull pin to open head for easy removal from the connector
• Forward handle position improves tool balance
• Greenlee® battery powered crimping tools now use bio-degradable oil
• Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• LED light provides the operator with the battery charge and tool maintenance status
• LED work light illuminates dark work areas
• One trigger controls all tool functions
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• State of the art 18 V lithium-ion battery provides 70% more cycles per charge and faster cycle times
• Tools automatically retract when the crimping cycle is complete
• Utilizes four indentors to make the crimp
SPECIFICATIONS:
• Type: Dieless Style Crimper
• Wire Size: 6 AWG - 750 Kcmil Cu & Al
• Crimping Force: 12400 lbs (55 kN)
• Crimping Capacity: 750 Kcmil (MCM) Cu & Al
• Connector Type: Color-Coded Lugs and Splices
• Handle Type: Pistol Style with Over Molded Rubber Grip
• Overall Length: 14.875"
• Sub Brand: Gator
• Voltage Rating: 18V
• Battery: 18V 4.0Ah Li-Ion
• Battery Charger: 120V
• Standard: C/US UL Listed
Battery-powered, High-speed Crimping Tool, hand-held, self-contained, dieless crimping tool intended to crimp aluminum and copper connectors onto electrical cable. These tools have a retraction stop feature which allows the operator to stop the retraction motion of the ram to shorten cycle time. These tools have a Bluetooth® connectivity and an LCD screen.
