SKU: Metal Tech M-SHPH1

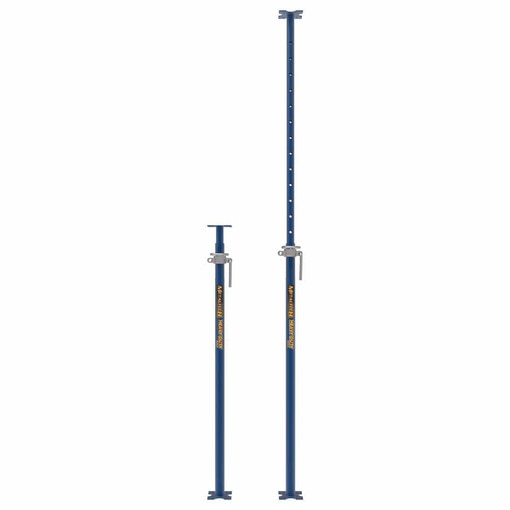

Metal Tech M-SHPH1 Heavy Duty Adjustable Shoring Post 5'9"-10'3"
Details
INCLUDES:
• (1) Shoring Post
FEATURES:
• Easy to handle and quick to set up
• Model number stamped on each plate, better inventory management

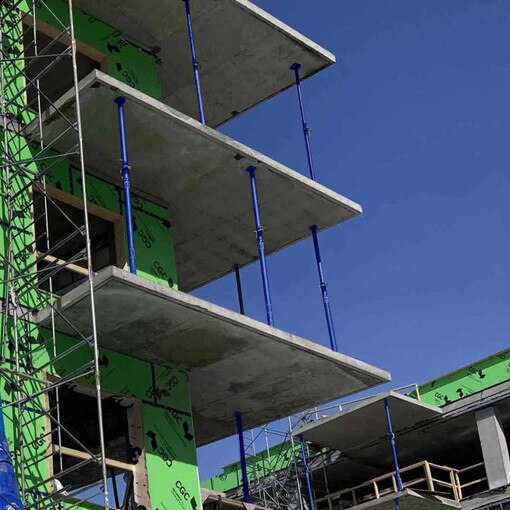

• Can be used as shore post or re-shoring application
• High load capacity- 14980 lbs. to 5970 lbs.
• Blue powder coated finish

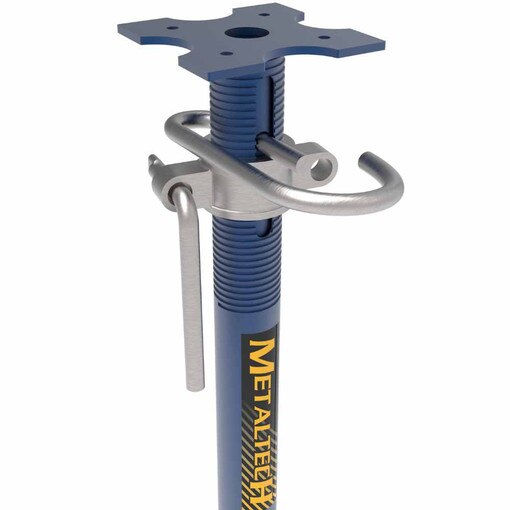

• G-lock pin allows for quick assembly and dismantling
SPECIFICATIONS:

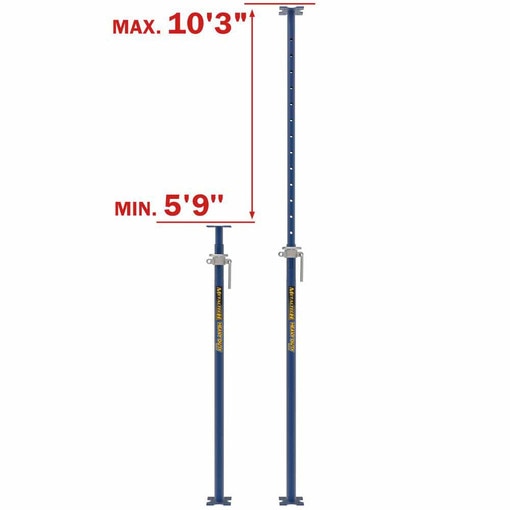

• Closed Dimensions: 5'9" (1.75 m)
• Extended Dimensions: 10'3" (3.12 m)
• Safe Load Closed (Safety Factor 3:1): 14980 lbs (66.6 KN)
• Safe Load Extended (Safet Factor 3:1): 5970 lbs (26.5 KN)
• Weight: 40.3 lbs
• Standards: Tested by a Third Party Laboratory and Comfirms to Standard: -CAN/CSA S269.2-16 & ANSI/SSFI SH300-2007
The MetalTech "H"Series Shoring post 5 ft. 9 in. Shoring Post can adjust from 5 ft. 9 in. To 10 ft.3in. Quick release G-Lock pin for easy assembly and dismantling. Generous adjustment range with holes at each 4 in. With L-shaped handle for easier fine adjustment. Tested by a Third Party Laboratory and conforms to standard CAN/CSA S269.2-16 & ANSI/SSFI SH300-2007.
• (1) Shoring Post
FEATURES:
• Easy to handle and quick to set up
• Model number stamped on each plate, better inventory management
• Can be used as shore post or re-shoring application
• High load capacity- 14980 lbs. to 5970 lbs.
• Blue powder coated finish
• G-lock pin allows for quick assembly and dismantling
SPECIFICATIONS:
• Closed Dimensions: 5'9" (1.75 m)
• Extended Dimensions: 10'3" (3.12 m)
• Safe Load Closed (Safety Factor 3:1): 14980 lbs (66.6 KN)
• Safe Load Extended (Safet Factor 3:1): 5970 lbs (26.5 KN)
• Weight: 40.3 lbs
• Standards: Tested by a Third Party Laboratory and Comfirms to Standard: -CAN/CSA S269.2-16 & ANSI/SSFI SH300-2007
The MetalTech "H"Series Shoring post 5 ft. 9 in. Shoring Post can adjust from 5 ft. 9 in. To 10 ft.3in. Quick release G-Lock pin for easy assembly and dismantling. Generous adjustment range with holes at each 4 in. With L-shaped handle for easier fine adjustment. Tested by a Third Party Laboratory and conforms to standard CAN/CSA S269.2-16 & ANSI/SSFI SH300-2007.
