SKU: Metal Tech M-SHPH2

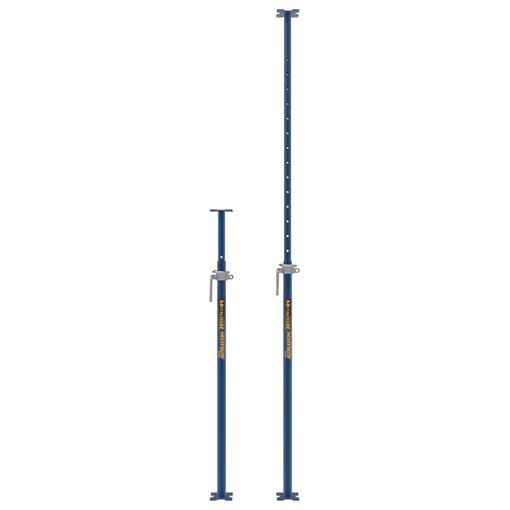

Metal Tech M-SHPH2 Heavy Duty Adjustable Shoring Post 6'6"-11'
Details
INCLUDES:
• (1) Shoring Post
FEATURES:
• Easy to handle and quick to set up
• Model number stamped on each plate, better inventory management

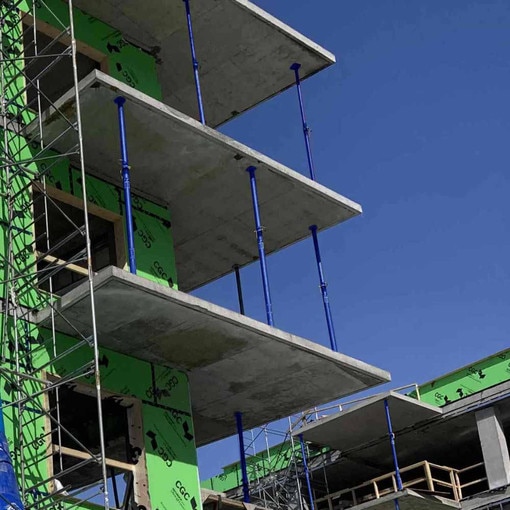

• Can be used as shore post or re-shoring application
• High load capacity- 13890 lbs. to 5650 lbs.
• Blue powder coated finish

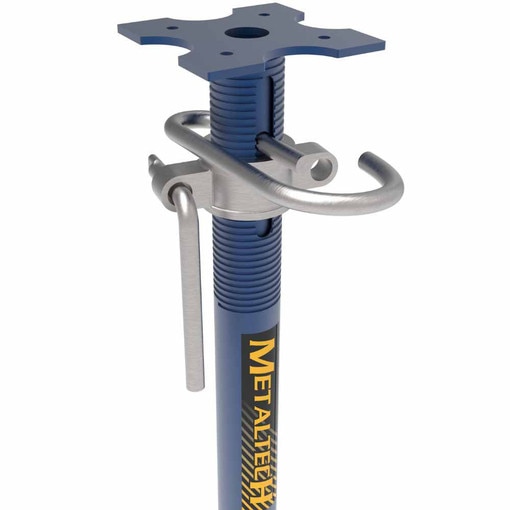

• G-lock pin allows for quick assembly and dismantling
SPECIFICATIONS:

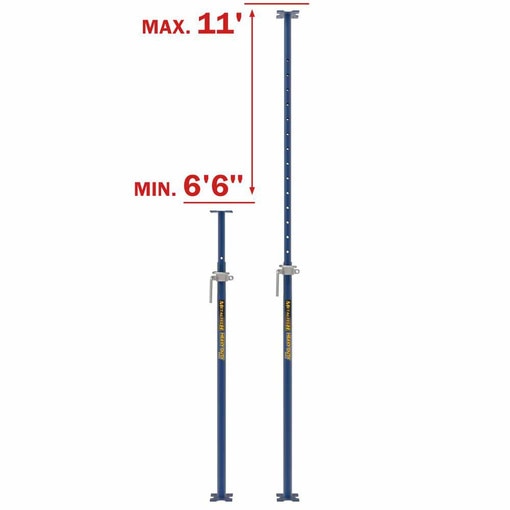

• Closed Dimensions: 6'6" (1.98 m)
• Extended Dimensions: 11' (3.35 m)
• Safe Load Closed (Safety Factor 3:1): 13890 lbs (61.7 KN)
• Safe Load Extended (Safet Factor 3:1): 5650 lbs (25.1 KN)
• Weight: 42.5 lbs
• Standards: Tested by a Third Party Laboratory and Comfirms to Standard: -CAN/CSA S269.2-16 & ANSI/SSFI SH300-2007
The MetalTech "H"Series Shoring post 6 ft. 6 in. Shoring Post can adjust from 6 ft. 6 in. To 11 ft. Quick release G-Lock pin for easy assembly and dismantling. Generous adjustment range with holes at each 4 in. With L-shaped handle for easier fine adjustment. Tested by a Third Party Laboratory and conforms to standard CAN/CSA S269.2-16 & ANSI/SSFI SH300-2007.
