SKU: Safety Rail Company 400131
Safety Rail Company 400131 LadderGuard Lite 7.5 Fixed Ladder Guarding System
Details
INCLUDES:
• (2) 7 1/2ft. rails
• (2) LadderGuard base plates
• (2) Posts
• (4) Ladder spanners
• (1) Self-closing gate and all required hardware
FEATURES:
• OSHA compliant fall protection for permanent ladder installations on buildings and rooftops
• Clamp-on system attaches to vertical rails of existing ladders
• Extends 7 1/2ft. onto roof to create a corral barrier between a worker and the roof edge for entering/exiting existing ladder area
• No mechanical attachment to roof is required
• System is free-standing and non-penetrating to roof membrane
• Modular design and simple parts of this system allow quick setup
• No welding or cutting required
• OSHA required 42in. top rail with 21in. mid rail
• Heavy-duty welded steel construction
• Powder-coated Safety Yellow finish for visibility and corrosion resistance
• All installed, this system weighs only 123 lbs.
SPECIFICATIONS:
• Brand: Safety Rail Company
• Manufacturer's Warranty: 1 year Limited Warranty
• Ship Weight: 123.0 lbs
• Overall Height (in.): 42 1/2
• Adjustable: Yes
• Includes: Guardrail system, self-closing gate, ladder spanner attachment
• OSHA Approved: Yes
• Material Type: Welded steel tube construction
• Finish Type: Safety Yellow powder-coat
• Mounting Hardware Included: Yes
• Application: Protecting ladder access points on roof

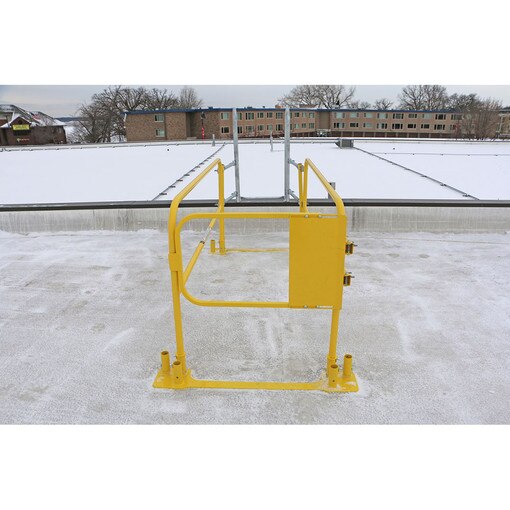

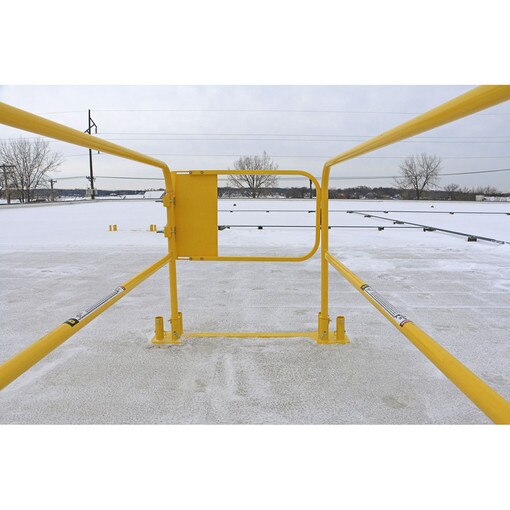

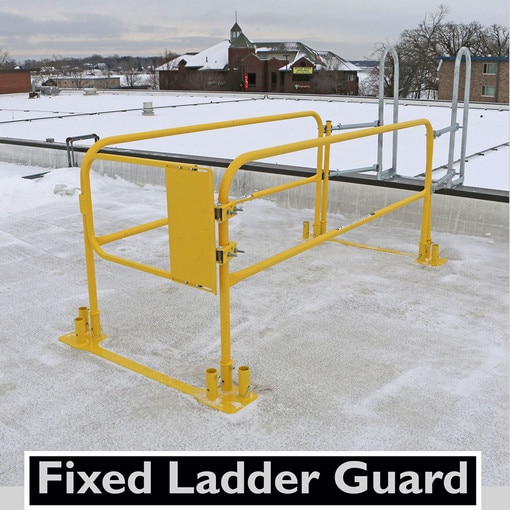

The LadderGuard Lite 7.5 Fixed Ladder Guarding System is the first-line of defense against accidental falls through ladder openings or ladder approach areas. This lightweight, non-penetrating system attaches to the vertical rails of the existing ladder. Once installed, it provides an OSHA compliant barrier between the roof edge and ladder opening. The LadderGuard Lite 7.5 system provides a 36” wide passageway and extends 7 1/2’ onto the roof. Adjustable spanner bars included in the package can extend the reach another 40” allowing for a full length 10’ control zone extending from the ladder. LadderGuard Lite 7.5 is a great entry level product, perfect for tight areas, that will significantly enhance fixed ladder safety. System is available in powder coat safety yellow, galvanized or a combination of these two finishes. The LadderGuard Lite 7.5 Fixed Ladder Guarding System is the most economical way to provide lightweight, OSHA-compliant fall protection for permanent fixed ladder installations on buildings. This clamp-on ladder guard system attaches to the vertical rails of the existing ladder and extends 7.5 feet onto the roof, acting as a barrier between the worker and the roof edge as he enters or exits the ladder area. The rest of the system is comprised of two 7.5 foot railings that sit in railing holders on the roof surface. Adjustable ladder spanner brackets can extend the reach of the system onto the roof by another 40+ inches. No mechanical attachment is required to the roof, therefore you never have to worry about holes in your roofing membrane. Modular design makes installation a snap, and all installed, the system weighs only 120 lbs. In fact, the heaviest piece to handle is the 21 lb. railing section. An optional self-closing gate (shown here) is also available. Safety yellow powder-coated finish is standard. Custom colors or all-galvanized finish are available.
