SKU: Safety Rail Company 400135

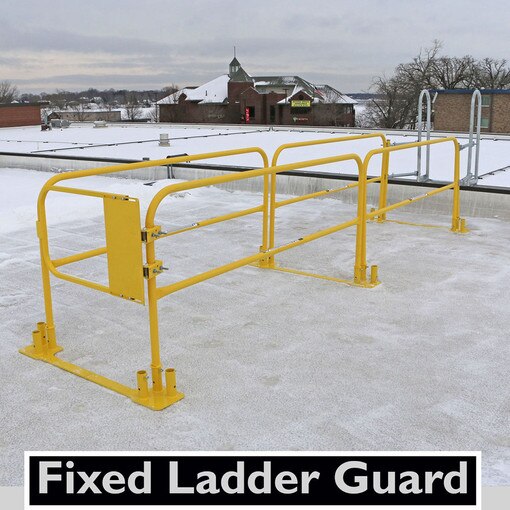

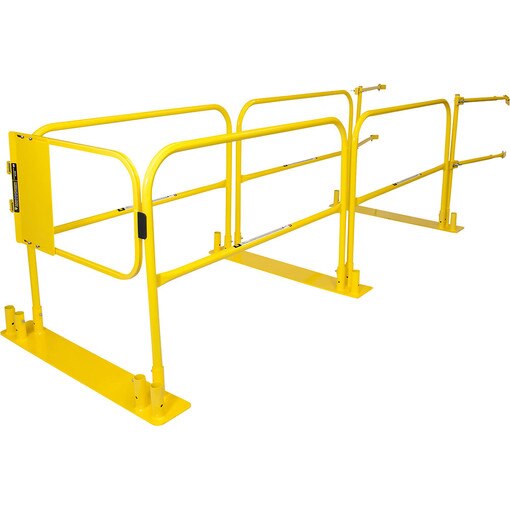

Safety Rail Company 400135 LadderGuard Lite 15 Fixed Ladder Guarding System
Details
INCLUDES:
• (4) 7 1/2ft. rails
• (3) LadderGuard base plates
• (2) Posts
• (4) Ladder spanners
• (1) Self-closing gate and all required hardware
FEATURES:
• OSHA compliant fall protection for permanent ladder installations on buildings and rooftops
• Clamp-on system attaches to vertical rails of existing ladders
• Extends 15ft. onto roof to create a corral barrier between a worker and the roof edge for entering/exiting existing ladder area
• No mechanical attachment to roof is required
• System is free-standing and non-penetrating to roof membrane
• Modular design and simple parts of this system allow quick setup
• No welding or cutting required
• OSHA required 42in. top rail with 21in. mid rail
• Heavy-duty welded steel construction
• Powder-coated Safety Yellow finish for visibility and corrosion resistance
• All installed, this system weighs only 181 lbs.
SPECIFICATIONS:
• Brand: Safety Rail Company
• Manufacturer's Warranty: 1 year Limited Warranty
• Ship Weight: 181.0 lbs
• Overall Height (in.): 42 1/2
• Adjustable: Yes
• Includes: Guardrail system, self-closing gate, ladder spanner attachment
• OSHA Approved: Yes
• Material Type: Welded steel tube construction
• Finish Type: Safety Yellow powder-coat
• Mounting Hardware Included: Yes
• Application: Protecting ladder access points on roof
The LadderGuard Lite 15 Fixed Ladder Guarding System builds on the merits of the LadderGuard Lite 7.5 but extends the access control zone to 15’. The LadderGuard Lite 15 system is designed to integrate with visual warning line systems set at the OSHA prescribed distance of 15‘ from a leading edge. Adjustable spanner bars which attach to the fixed ladder, can extend this reach another 40”. This lightweight, non-penetrating system attaches to the vertical rails of the existing ladder. Once installed, it provides an OSHA compliant barrier between the roof edge and ladder opening. Both LadderGuard Lite systems come with a self-closing gate. The LadderGuard Lite 15 Fixed Ladder Guarding System is the most comprehensive way to provide lightweight, OSHA-compliant fall protection for fixed ladder installations on buildings. This clamp-on ladder guard system attaches to the vertical rails of the existing ladder and extends 15 feet onto the roof, acting as a barrier between the worker and the roof edge as he enters or exits the ladder area. The rest of the system is comprised of four 7.5 foot railings that sit in railing holders on the roof surface. Adjustable ladder spanner brackets can extend the reach of the system onto the roof by another 40+ inches. No mechanical attachment is required to the roof, therefore you never have to worry about holes in your roofing membrane. Modular design makes installation a snap, and all installed, the system weighs only 152 lbs. In fact, the heaviest piece to handle is the 21 lb. railing section. An optional self-closing gate (shown here) is also available. Safety yellow powder-coated finish is standard. Custom colors or all-galvanized finish are available.
