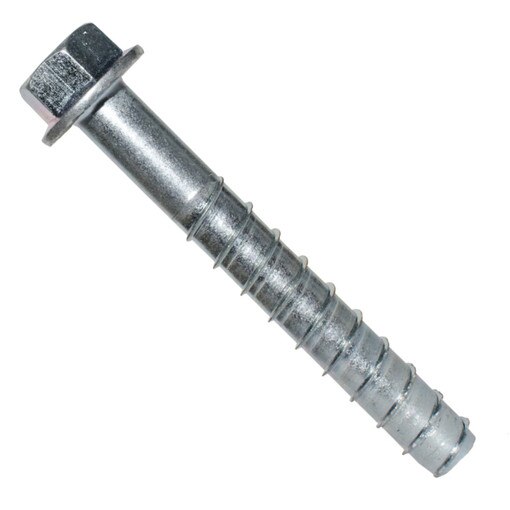

Simpson Strong-Tie THDT75600H Titen HD (3/4" x 6") Heavy Duty Screw Anchor - Zinc Plated (5 Pack)
Details
Simpson Strong-Tie THDT75600H Description
The Titen HD Screw Anchor Zinc Plated is a high-strength anchor designed for quick and easy installation in cracked and uncracked concrete applications. It features a patented thread design for efficient load transfer and is suitable for dry, interior environments.
Simpson Strong-Tie THDT75600H Includes
- (5) Titen HD Screw Anchor Zinc Plated 3/4" x 6"
Simpson Strong-Tie THDT75600H Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions

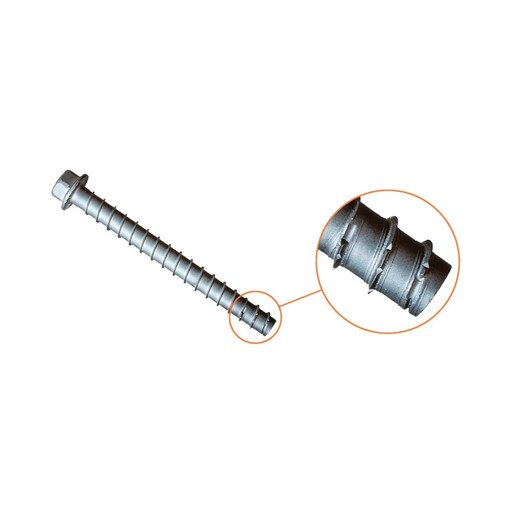

- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting
- Hex-washer head requires no separate washer
- Removable, ideal for temporary anchoring
- Use in dry interior environments only
Simpson Strong-Tie THDT75600H Applications
- Concrete anchoring in dry interior environments

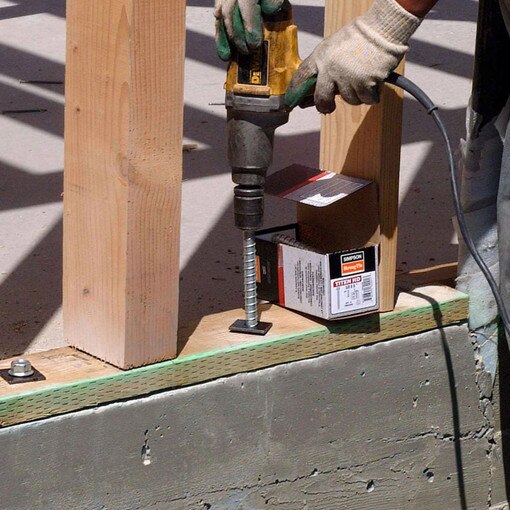

- Temporary anchoring for formwork and bracing
- Fixtures requiring removable anchors
Simpson Strong-Tie THDT75600H Installation Overview
- Drill a hole in the base material using a drill bit matching the anchor diameter.
- Clean the hole with compressed air.

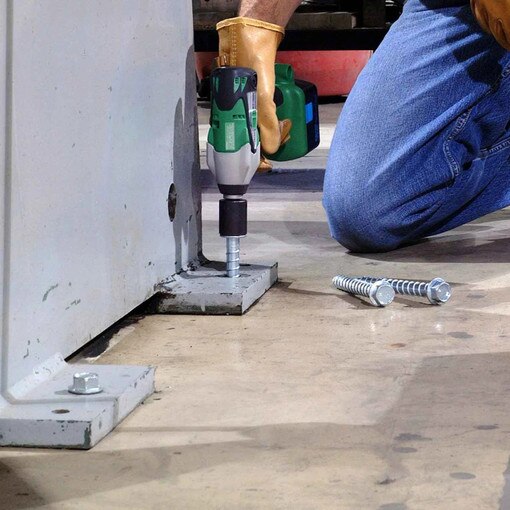

- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THDT75600H Specifications
| Diameter | 3/4" |
| Length | 6" |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Drill Bit Size | 3/4" |
| Drive Type | 1-1/8" Hex |
| Fixture Hole Size | 7/8"-15/16" |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: Use the correct fasteners in the specified positions to achieve the published load values
