SKU: Simpson Anchors DIA506SS

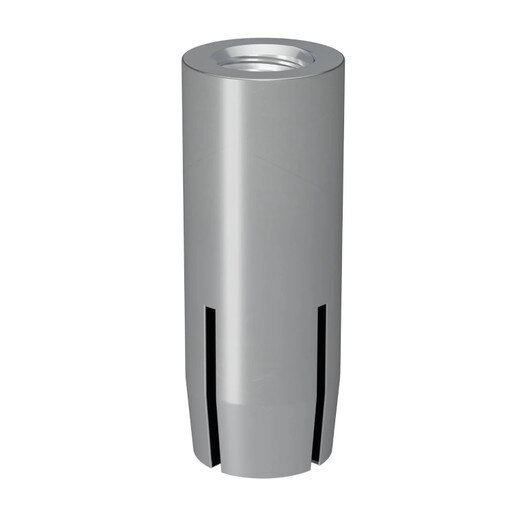

Simpson Strong-Tie DIA506SS (1/2") Drop-In Internally Threaded Anchor - Type 316 Stainless Steel (50 Pack)
Details
Simpson Strong-Tie DIA506SS Description
Simpson Drop-In expansion anchors are internally threaded anchors designed to be used in solid base materials. These anchors are made of 316 stainless steel for maximum corrosion resistance in harsh climates.
Simpson Strong-Tie DIA506SS Includes
- (50) Drop-In Anchor
Simpson Strong-Tie DIA506SS Features
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
Simpson Strong-Tie DIA506SS Applications
- Concrete Block — Grouted
Simpson Strong-Tie DIA506SS Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/8" for flush mounting. Blow the hole clean using compressed air. Overhead installations need not be blown clean.
- Insert designated anchor into hole. Tap with hammer until flush against surface.
- Using the designated drop-in setting tool, drive expander plug toward the bottom of the anchor until shoulder of setting tool makes contact with the top of the anchor.
- Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Simpson Strong-Tie DIA506SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 1/2" |
| Length | 2" |
| Accepts Rod Size | 1/2" |
| Drill Bit Size | 5/8" |
| Thread Length | 3/4" |
| Type | Straight |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
