SKU: Simpson Anchors THD50612H6SS

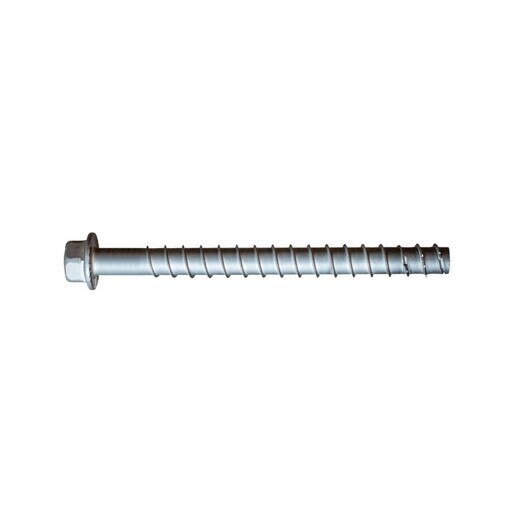

Simpson Strong-Tie THD50612H6SS Titen HD (1/2" x 6-1/2") Heavy Duty SS Screw Anchor - Type 316 (20 Pack)
Details
Simpson Strong-Tie THD50612H6SS Description
The Titen HD Screw Anchor is a high-performance, corrosion-resistant anchor designed for exterior and corrosive environments. Made from 316 stainless steel, it ensures durability and reliability.
Simpson Strong-Tie THD50612H6SS Includes
- (20) Titen HD Screw Anchor 316 Stainless Steel
Simpson Strong-Tie THD50612H6SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
Simpson Strong-Tie THD50612H6SS Applications
- Mechanical applications requiring secure anchoring
- Electrical installations needing reliable fastening
- Plumbing setups in corrosive environments

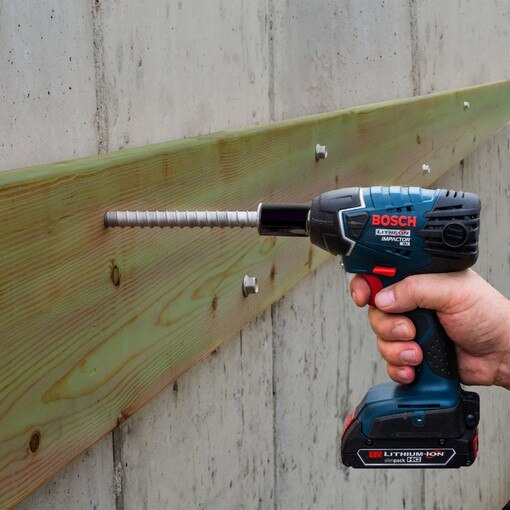

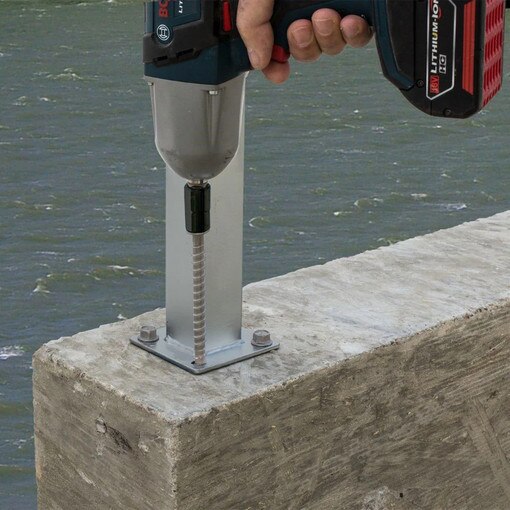

Simpson Strong-Tie THD50612H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD50612H6SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 1/2" |
| Length | 6-1/2" |
| Drill Bit Size | 1/2" |
| Drive Type | 3/4" Hex |
| Fixture Hole Size | 5/8"-11/16" |
| Head Type | Hex Head |
| Quantity | 20 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values.
