SKU: Tempo AT8L

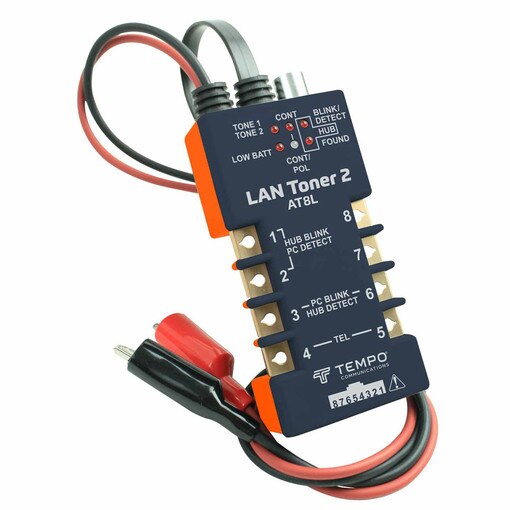

Tempo AT8L LAN Toner Modular Breakout Tone Generator
Details
Features:
- Digital interaction with LAN hubs and switches
- Splitable tone connections for tracking LAN cable
- LAN Hub tracking with activity light blinking
- LAN Hub detection
- Telephone service indicator
- Powered Ethernet check
- Short circuit check
- Selectable tracing tone sounds
- Series-connectable breakout adapter
- Works in RJ11 and RJ45-type jacks
- Low battery indicator
Specifications:
- Tracing transmitter signal power: +15 dBm, 7.5 V peak
- Transmitter OFF voltage tolerance: 60 V
- Transmitter battery life: 25 hours, nominal (Requires one 9 VDC battery for the transmitter)
