SKU: Tempo FIP100 Kit - LC/UPC
Tempo FIP100 Kit - LC/UPC Fiber Inspection Probe Kit, LC/UPC
Details

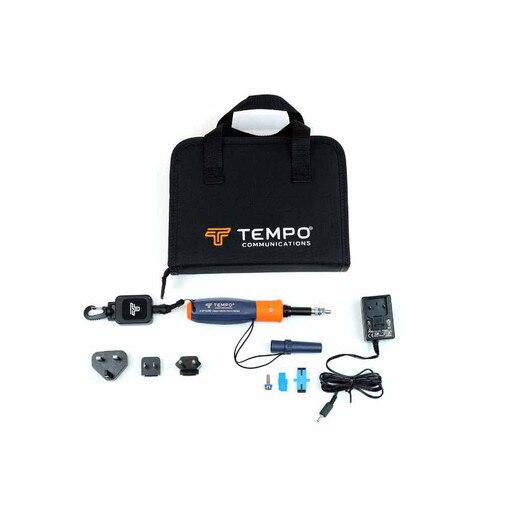

INCLUDES:
• (1) FIP100 Fiber Inspection Probe
• (1) Power Supply with Adapters (NA, UK & EU)
• (1) LC/UPC Bulkhead Tip
• (1) LC/UPC Bulkhead
• (1) SC/UPC Bulkhead Tip
• (1) SC/UPC Bulkhead
• (1) Carry Case
• (1) Quick Reference Card
FEATURES:
• Test ferrule end faces and bulkheads compliant to IEC61300-3-35
• Single-handed, one-button operation
• Auto focus, auto-capture, auto test
• LED pass/fail indicator on probe
• Small form factor enables inspection of difficult-to-reach ports
• Create and share reports on Android and iOS devices
• IEC, IPC and user-defined inspection criteria
• Wide range of adapter tips
SPECIFICATIONS:
• Field of View (FOV): Live and Captured: 612 x 460 ?m
• Manual Detection Capability (Minimum): 0.25 ?m
• Auto Analysis Resolution: <1.0 ?m
• Stored Image Size: 2592 x 1944 (5M) Pixels
• End-face Illumination: Coaxial blue LED 476 nm
• Maximum No Damage Live Fiber Power Level: +20 dBm
• WiFi Characteristics: IEEE 802.11bng
• Focus: Auto-focus (?3 sec) and Manual Focus
• Centering: Auto-Centering (<1 sec)
• Button Functionality: Power On/Off (>3 secs); Capture/Analysis/Auto-save/Live
• Main LED Functionality: Blue = Connected to App, Green = Pass, Red = Fail
• Magnification: Variable from 80X to 700X, in Live and Capture Modes
• Applications Compatibility: Android ?4.0.3, iOS ?8.1
• Image Capture with Pass/Fail Analysis: IEC 61300-3-35, AT&T TP-76461, IPC-8497-1, User-Set Criteria

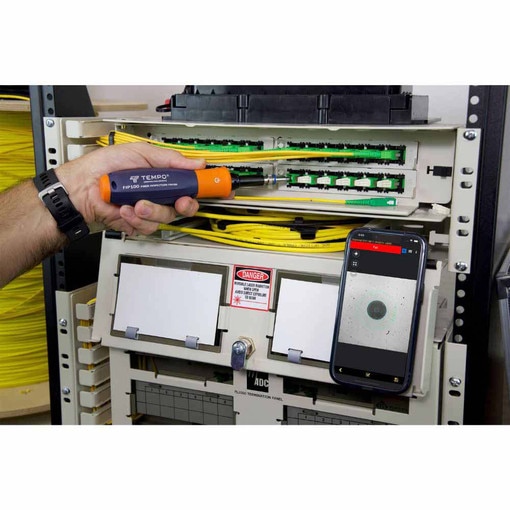

The FIP100 from Tempo is a fully automated inspection tool that provides fast and reliable analysis of fiber optic connector end faces and bulkheads. With a single button press, the FIP100 automatically focuses, captures an image of the connector endface, and provides a pass/fail result. The pass/fail status of the connector is instantly reported via a red/green LED on the probe. Detailed results are shown on the iOS or Android app, which provides PDF report generation and sharing. Both apps are pre-loaded with pass/fail requirements from IEC 61300-3-35, as required by all major telecommunications service providers.
