SKU: Tempo PM100

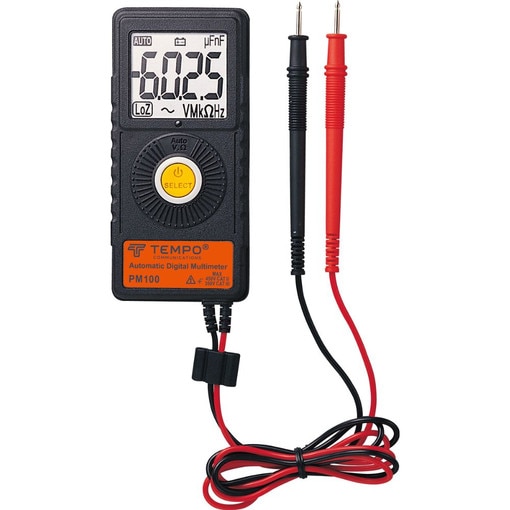

Tempo PM100 PM100 Pocket Multimeter
Details
INCLUDES:
• (1) Multimeter
• (1) Test Leads
• (1) Zipper Case
FEATURES:
• The PM100 is supplied in a convenient zipper case and includes a 6000 count large digit LCD.
• The only control on this Pocket Multimeter is a single push button that switches the unit on and off, and cycles through the various tests.
• The PM100 powers up in Auto mode and checks for voltage and displays if present, if not, it will attempt to measure resistance.
• Manual modes are:Continuity (with visible and audible indication)Electric Field (EF) for non-contact or contact checking for presence of ac voltageAC voltage (low impedance to prevent ghost readings) to 450 VDC voltage to 450 VResistance to 6 milliohms
• Frequency to 30 kHzCapacitance to 100 uF
SPECIFICATIONS:
• Display: 6000-Count LCD
• Polarity: Automatic
• Display Update Rate: 5 per second
• Temperature Coefficient: Nominal 0.15 x (specified accuracy) per °C Below 18 °C or Above 28 °C
• Intelligent Automatic Power Off: After 3 Minutes of Inactivity (approximately)
• Noise Rejection: Common Mode Rejection Ratio: > 60 dB From 0 Hz to 60 Hz When Measuring ACV, Common Mode Rejection Ratio: > 100 dB at 0 Hz, 50 Hz, and 60 Hz When Measuring DCV, Normal Mode Rejection Ratio: > 30 dB at 50 Hz and 60 Hz When Measuring DCV
• Operating Conditions: Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Relative Humidity (non-condensing): 80% Maximum for Temperatures up to 31 °C (88 °F), Decreasing Linearly to 50% Maximum at 40 °C (104 °F)
• Altitude: 2000 m (6500’) Maximum
• Pollution Degree: 2
• Storage Conditions: –20 °C to 60 °C (–4 °F to 140 °F), 0% to 80% Relative Humidity (non-condensing)
• Battery: 3V Standard Button Battery (IEC-CR2032; ANSI-NEDA-54004LC)
• Low Battery: Below 2.4 VDC
• Overvoltage Protection: 450 VDC/VAC RMS, 50/60 Hz
• Measurement Categories: Cat II, 450 V - Cat III, 300 V
The PM100 Pocket Multimeter from Tempo Communications is an accurate, automatic, pocket-sized meter that deserves to live in every technician's (or homeowners') tool bag, if not pocket. It has a default power on mode that magically checks for voltage and displays that if present, if not then it will attempt to measure resistance. The PM-100 is a go-to-tool for quickly checking electrical supplies and basic continuity. Volts, ohms, continuity, electric field, frequency, capacitanceCAT-III 300V, CAT-II 450VSupplied with integrated test leads with arc-flash guardsIncludes a custom fabric carry case
