SKU: Tempo T23403OLV-APC-50U

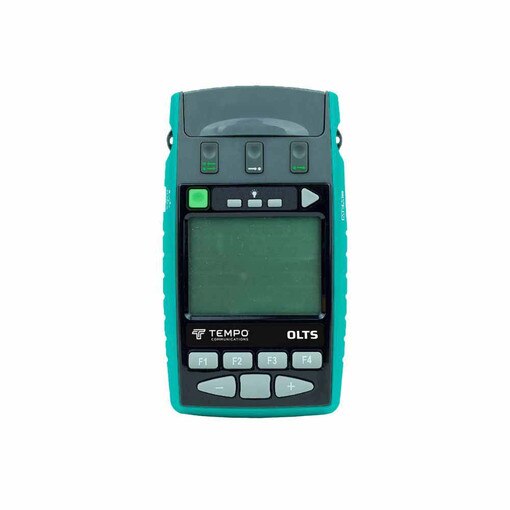

Tempo T23403OLV-APC-50U Ultra-Stable 2W Loss, Length & ORL Tester, 850-1300 nm
Details
INCLUDES:
• (1) Two-Way Optical Loss Tester
FEATURES:
• 25% of the size / weight, 7x the battery life of competitors
• Bidirectional Autotest loss, length and ORL testing on one fiber
• Full-feature optical return loss tester
• Real time Pass / Fail display
• 8,000 fiber memory and USB Flash Drive file dump
• KITS™ reporting software
• Autotest optical power meter, >25 ?, 1 % accuracy
• Traceable calibration reports: power meter & linearity, source ? & stability, ORL
SPECIFICATIONS:
• 80 hr alkaline battery life
• 3 Year warranty and calibration cycle
• EF compliant multimode sources
• Modulated Output (Source): 270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber IDTtones
• Output Wavelength (Source): 850-1300 nm LED APC, VisiTester
• Output Power (Source): -27 dBm ±1 dB @ 62.5 µm
• Adjust Output Power (Source): Fixed
• Short Term Stability for 15 min, Typical ±2 °C, After Warm Up, ORL < -25 dB (Source): 0.01 dB
• Stability Over Temperature (Source): 0.35 dB
• Wavelength Drift (Source): 0.4 nm per °C (Typical)
• Reconnection Repeatability @ 95% Confidence (Source): 0.05 dB
• Mode Controlled (Source): 50/125µm Compliant: IEC 61280-4-1 {Ed.1.0}, TIA 526-14A & TIA TSB-178
• Length Range (2-Way Autotest Only): 4.5 dB @ 50 µm
• Length Accuracy (2-Way Autotest Only): 0.01% ± 4 meters
• Length Resolutions: 1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~127.9 Km)
• Loss Range (2-Way Autotest): 21.5 dB @ 50 µm
• Loss Repeatability & Loss Linearity (2-Way Autotest): 0.06 dB
A Two-Way Optical Loss Tester (OLTS) that’s perfect for medium to ultra high fiber count loss, length and optical return loss testing applications on multimode fiber at 850 / 1330nm. A pair of these compact instruments set new standards of productivity, accuracy and ease of use. A multimode APC connector on this model is required for reliable ORL test performance. The 650 nm VFL VisiTester feature mixes a VFL in with the test signal during Autotest. It operates as a stand-alone VFL, or gives positive visual identification of a fiber to be connected during loss testing. Each fiber needs just one test hook-up and one key press for a complete 2W / bidirectional loss, length & ORL test, and the same test method can be used for all fibers in a network, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports. A pair of instruments both display length & bi-directional loss, & ORL each end, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone ultra-stable light source & power meter, VFL, ORL meter, or tone generator / detector. The ORL meter is calibrated with 50 u fiber, and works on 62.5u fiber with an appropriate dB offset.
