SKU: Tempo T23422OLV

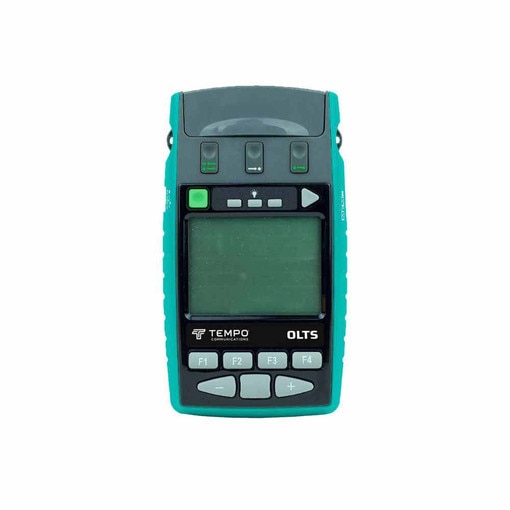

Tempo T23422OLV Ultra-Stable 2W Loss, Length & ORL Tester, 1310-1550 nm
Details
INCLUDES:
• (1) Two-Way Optical Loss Tester
FEATURES:
• 25% of the size / weight, 7x the battery life of competitors
• Bidirectional Autotest loss, length & ORL testing on one fiber
• Full-feature optical return loss tester
• Real time Pass / Fail display
• 8,000 fiber memory and USB key file dump
• KITS™ reporting software
• Autotest optical power meter, >25 ?, 1 % accuracy
• Traceable reports: source stability & ?, meter cal & linearity, ORL cal
SPECIFICATIONS:
• 80 hr alkaline battery life
• 3 Year warranty and calibration cycle
• Modulated Output (Source): 270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID tones
• Output Wavelength (Source): 1310-1550 nm Laser, VisiTester
• Output Power (Source): -7 dBm ±1 dB @ SMF
• Adjust Output Power (source): Adjustable Over 7 dB in 0.01 dB Steps
• Short Term Stability for 15 min, Typical ±2 °C, After Warm Up, ORL < -25 dB (Source): 0.03 dB
• Stability Over Temperature (Source): 0.2 dB (Max)
• Wavelength Drift (Source): 0.4 nm per °C (Typical)
• Wavelength Initial Tolerance @ 25 °C (Source): 20 nm
• Spectrum Width @ FWHM (Source): 3 nm (Typical)
• Reconnection Repeatability @ 95% Confidence (Source): 0.1 dB
• Length Range (2-Way Autotest Only): 27 dB
• Length Accuracy (2-Way Autotest Only): 0.01% ± 4 meters
• Length Resolutions: 1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~127.9 Km)
• Loss Range (2-Way Autotest): 44 dB
A Two-Way Optical Loss Test set (OLTS) that’s perfect for medium to ultra high fiber count loss, length and optical return loss testing applications on single mode fiber at 1310 / 1550 nm. A pair of these compact instruments set new standards of productivity, accuracy and ease of use. The 650 nm VFL Visitester feature mixes a VFL in with the test signal during Autotest. In addition to operating as a typical VFL, it gives positive visual identification of a fiber to be connected for loss testing. Each SM fiber needs just one test hook-up and one key press for a complete 2W / bidirectional loss, length & ORL test, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports. A pair of instruments both display length bi-directional loss, & ORL fiber testing each end, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone ultra-stable light source & power meter, VFL, ORL meter, or tone generator / detector. ORL sensitivity on this model is typically adequate for installed cable testing, but is limited by the PC connector. For best ORL sensitivity, select a model with an APC connector.
