SKU: Tempo T23424OL-APC

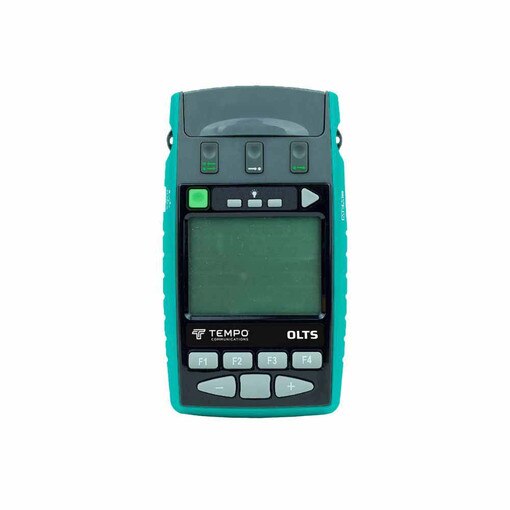

Tempo T23424OL-APC Ultra-Stable Two-Way Loss, Length & ORL Teste
Details
INCLUDES:
• (1) Two-Way Optical Loss Tester
FEATURES:
• 25% of the size / weight, 7x the battery life of competitors
• Bidirectional Autotest loss, length & ORL testing on one fiber
• Full-feature optical return loss tester
• Real time Pass / Fail display
• 8,000 fiber memory and USB Flash Drive file dump
• KITS™ reporting software
• Autotest optical power meter, >25 ?, 1 % accuracy
• Traceable calibration reports: power meter & linearity, source ? & stability, ORL
SPECIFICATIONS:
• 80 hr alkaline battery life
• 3 Year warranty and calibration cycle
• EF compliant multimode sources
• Output Wavelength (Source): Port 1: 1310, 1550 nm Laser APC / Port 3: 850, 1300 nm LED APC
• Output Power (Source): -3 dBm ±1 dB (@ 9/125 µm for 1310, 1550 m) / -23 dBm ±1 dB (@ 62.5/125 µm for 850, 1300 nm)
• Adjust Output Power (Source): Adjustable Over 7 dB in 0.01 dB Steps (for 1310, 1550 nm) / Fixed (for 850, 1300 nm)
• Short Term Stability for 15 min, Typical ±2 °C, After Warm Up, ORL < -25 dB (Source): 0.03 dB (for 1310, 1550 nm) / 0.01 dB (for 850, 1300 nm)
• Stability Over Temperature (source): 0.2 dB (max for 1310, 1550 nm) / 0.35 dB (max for 850, 1300 nm)
• Wavelength Initial Tolerance @ 25 °C (Source): 20 nm (for 1310, 1550 nm)
• Wavelength Drift (Source): 0.4 nm per °C (typical for 1310, 1550 nm) / 0.4 nm per °C (typical for 850, 1300 nm)
• Mode Controlled (Source): 850, 1300 nm (50/125µm compliant: IEC 61280-4-1 {Ed.1.0}, TIA 526-14A & TIA TSB-178)
• Spectrum Width @ FWHM (Source): 3 nm (Typical for 1310, 1550 nm)
• Reconnection Repeatability @ 95% Confidence (Source): 0.1 dB (for 1310, 1550 nm Laser) / 0.05 dB (for 850, 1300 nm LED)
• Length Range (2-Way Autotest Only): 6 dB @ 62.5 µm (for 850, 1300 nm) / 30 dB (for 1310, 1550 nm)
• Length Accuracy (2-Way Autotest Only): 0.01% ± 4 meters
• Length Resolutions: 1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~127.9 Km)
• Loss Range (2-Way Autotest): 27 dB @ 62.5 µm (for 850, 1300 nm) / 47 dB (for 1310, 1550 nm)
A Quad Two-Way Optical Loss Test set / OLTS fiber tester that’s perfect for medium to ultra high fiber count loss, length & optical return loss testing applications on both multimode and single mode fiber with APC connectors on both ports at 850 / 1330nm 1310/1550 nm. A pair of these compact SM & MM instruments set new standards of productivity, ultra-stable source accuracy and ease of use. A multimode APC connector on this model is required for reliable ORL test performance. Each fiber needs just one test hook-up and one key press for a complete bidirectional loss, length & ORL test, and the same test method is used for both multimode and single mode fiber, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports. The optical fiber length measurement feature is accurate, integrated with the other measurements, and requires only one fiber to be hooked up. A pair of instruments both display length, bi-directional loss & ORL each end in real time, with no need to specify master/slave instruments. A single OLTS instrument can also be used as a stand-alone ultra-stable light source, power meter, ORL meter or tone generator / detector.
