SKU: Tempo T2600

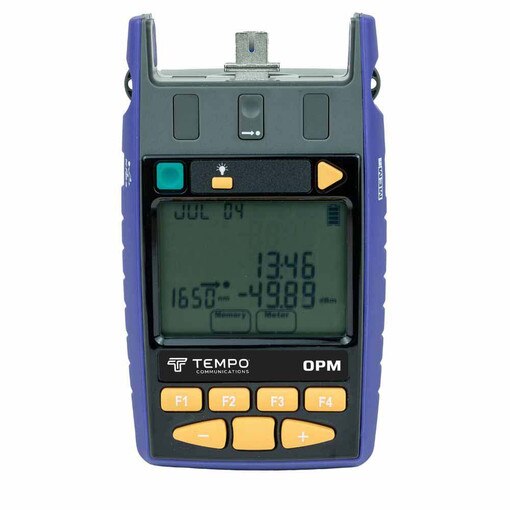

Tempo T2600 Handheld Optical Power Meter
Details
INCLUDES:
• (1) 1C Connector Adaptor (OPT046)
• (1) Operation Manual
• (1) QA Certificate
• (1) ILAC/NATA Traceable Calibration Certificate
• (1) Carry Pouch (OPT149)
• (1) Carry Strap
• (1) USB-A to USB-Micro Type Cable
• (1) KITS Recording/Reporting Software, Download from Website for Free
FEATURES:
• Easy to use, rugged & versatile
• 25 calibration ?, 1% accuracy ISO/IEC 17025 traceable
• Improved high power accuracy
• Autotest with up to 3 ? displayed
• Long battery life & micro USB external power
• Large back-lit LCD, sunlight readable
• Interchangeable connectors
• Large memory with text naming & time stamp
SPECIFICATIONS:
• KITS™ reporting software with data security
• One button memory dump to USB key
• MultiFiber ID tone detection
• Full QA & linearity test report
• Detector Type: InGaAs
• Calibration Accuracy: 1% (0.06 dB)
• Response Wavelength: 600 ~ 1700 nm
• Calibration Wavelengths: 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm
• Power Range: +10 ~ -60 dBm (for 780 ~ 980 nm) / +10 ~ -70 dBm (for 1270 ~ 1650 nm)
• Mid-Range Linearity: 0.04 dB (Typical)
• Total Uncertainty: 0.3 dB (Max)
• Wavelength Sensitivity (± 30 nm): 0.03 dB (Typical)
• ID Tone Detection & Autotest Sensitivity: Up to -50 dBm
• Calibration Validity: 3 Years (ISO/IEC 17025)
• Resolution: 0.01 dB
• Polarization Sensitivity: < 0.05 dB (Typical)
• Tone Detection: 150 ~ 9999 Hz ± 1 %
• Power: 2x AA (LR6) Alkaline / External Via USB
A handheld power meter for use by professional installers and contractors, to test power, loss and continuity on single mode & multimode fiber optic systems. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.
