SKU: Tempo T2600XL-GE7

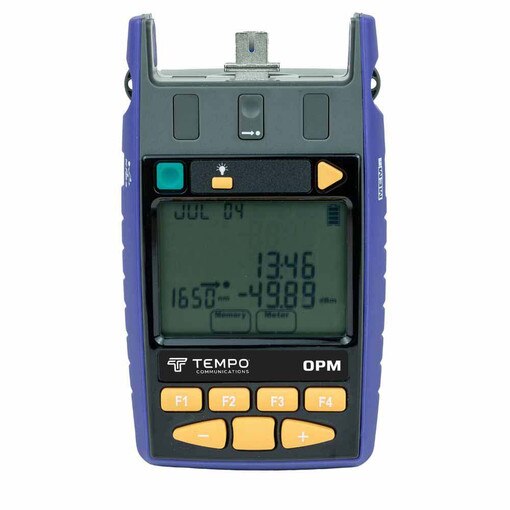

Tempo T2600XL-GE7 Large Area MPO Optical Power Meter GE 7mm
Details
INCLUDES:
• (1) Operation Manual/Quick Guide
• (1) QA Certificate
• (1) Set ILAC/NATA Traceable Calibration Certificate
• (1) Soft Carry Pouch
• (1) Wrist Strap
• (1) USB Cable (A-Micro Type)
• (1) KITS Recording/Reporting Software, Download from Website for Free
FEATURES:
• Easy to use, rugged & versatile
• Specifically optimised for MMC / MPO 12 x n, 16 x n fiber ribbon connectors
• 32 calibration ?, 1% accuracy ISO/IEC 17025 traceable
• Improved high power accuracy
• Autotest with up to 3 ? displayed
• Long battery life & micro USB external power
• Large back-lit LCD, sunlight readable
• Interchangeable optical connectors
SPECIFICATIONS:
• Large memory with text naming & time stamp
• KITS™ reporting software with data security
• One button memory dump to USB Flash Drive
• MultiFiber ID tone detection
• Full QA & linearity test report
• Detector Type: Ge (7 x 3.5 mm)
• Response Wavelength: 600 ~ 1650 nm
• Calibration Wavelengths: 660, 780, 820, 850, 880, 910, 940, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm
• Power Range: +15 ~-30 dBm (for 660 ~ 820 nm, 1590 ~ 1650 nm) / +15 ~ -40 dBm (for 850 ~ 1570 nm)
• Mid-Range Linearity: 0.06 dB (Typical)
• Wavelength Sensitivity (± 30 nm): 0.2 dB (Typical)
• Response Uniformity Across Detector: 2 % (0.09 dB)
• ID Tone Detection & Autotest Sensitivity: -30 dBm
• Calibration Accuracy: ±1 % (0.06 dB)
• Calibration Validity: 3 Years (ISO/IEC 17025)
• Resolution: 0.01 dB
• Polarization Sensitivity: < 0.05 dB (Typical)
• Tone Detection: 150 ~ 9999 Hz ± 1 %
• Power: 2x AA (LR6) Alkaline / External Via Micro-USB
An optical power meter for professional installers and contractors, to test power, loss, and continuity on multimode + single mode fiber optic systems up to +15 dBm, with a 7 x 3 mm Ge detector, Ideal for testing: all multi-fiber ribbon cable such as MMC or MPO styles 16 -32 fiber, 12 to 72 fiber, SM & MM, and other connector styles and LC/ SC etc. fiber optic systems. This full feature instrument has comprehensive report-generation capabilities and a variety of useful features for maximum productivity and flexibility. For all current / proposed versions of fiber optic Ethernet and InfiniBand. Productivity power meter. Large area detector for ribbon, MPO 16 / 32 testing. Ideal for cable installers
