SKU: Tempo T27403LV

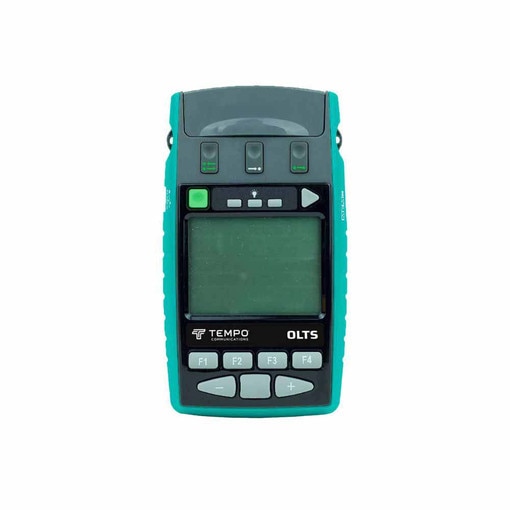

Tempo T27403LV Multimode Two-Way Loss & Length Test Set
Details
INCLUDES:
• (1) SC/SC (OPT046) Hybrid Adaptors 1 per Port
• (1) SC/LC (OPT076) Hybrid Adaptors 1 per Port
• (1) SC/ST (OPT040) Hybrid Adaptors [only for T23400 & T27400 Series with LED Sources] 1 per Port
• (1) SC PC Terminator (OPT703) [only for T23400 Series]
• (1) SC APC Terminator (OPT704) [only for T23400 Series]
• (1) SC-SCAPC SMF Test Lead (OPT730-SCP-SCA) [Only for T23400 Series with Laser Sources]
• (1) SC-SCAPC MMF Test Lead (OPT706) [Only for T23400 Series with LED Sources]
• (1) SC-SC(APC) MMF Test Lead (OPT740-SCP-SCA) [Only for T23400 Series with LED Sources at 50 µm]
• (1) Set 50 & 62.5 µm Fiber Mandrel Wrap Set for Multimode Sources (OPT701) [only for T23400 & T27400 Series with LED Sources]
• (1) USB Cable _A-B Type)
FEATURES:
• (1) Carry Pouch
• (1) Wrist Strap
• (1) Operation Manual
• (1) Set of QA Certificates
• (1) Set ILAC/Nata Traceable Calibration Certificates Including Power Meter, Light Source, Two-Way Detector
• 25% of the size / weight, 7x the battery life of competitors
• Bidirectional Autotest loss & length testing on one fiber
• Real time Pass / Fail display
• 8,000 fiber memory and USB Flash Drive file dump
• KITS™ reporting software
• Autotest optical power meter, >25 ?, 1 % accuracy
• Traceable calibration reports: power meter & linearity, source ? & stability
• 80 hr alkaline battery life
SPECIFICATIONS:
• 3 Year warranty and calibration cycle
• EF compliant multimode sources
• Modulated Output (Source): 270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID Tones
• Output Wavelength (Source): 850-1300 nm LED, VisiTester
• Output Power (Source): -27 dBm ±1 dB @ 62.5 µm
• Adjust Output Power (Source): Fixed
• Stability Over Temperature (Source): 0.35 dB
• Short Term Stability for 15 min, Typical ±2 °C, After Warm Up, ORL < -25 dB (Source): 0.01 dB
• Wavelength Drift (Source): 0.4 nm per °C (Typical)
• Mode Controlled (Source): 50/125µm Compliant: IEC 61280-4-1 {Ed.1.0}, TIA 526-14A & TIA TSB-178
• Reconnection Repeatability @ 95% Confidence (Source): 0.05 dB
• Length Range (2-Way Autotest Only): 4.5 dB @ 62.5 µm
• Length Accuracy (2-Way Autotest Only): 0.01% ± 4 meters
• Length Resolutions: 1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~127.9 Km)
• Loss Range (2-Way Autotest): 24 dB @ 62.5 µm
• Loss Repeatability & Loss Linearity (2-Way Autotest): 0.06 dB
A Two-Way Optical Loss Test set (OLTS) that’s perfect for medium to ultra high fiber count loss & length testing applications on multimode fiber at 850 / 1330nm. A pair of these compact instruments set new standards of productivity, accuracy and ease of use. The 650 nm VFL VisiTester feature mixes a VFL in with the test signal during Autotest. It operates as a stand-alone VFL, or gives positive visual identification of a fiber to be connected during loss testing. Each fiber needs just one test hook-up and one key press for a complete bidirectional loss and length test, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports. A pair of instruments both display length & bi-directional loss, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone light source & power meter, VFL, or tone generator / detector.
