SKU: Tempo T27424LV-APC

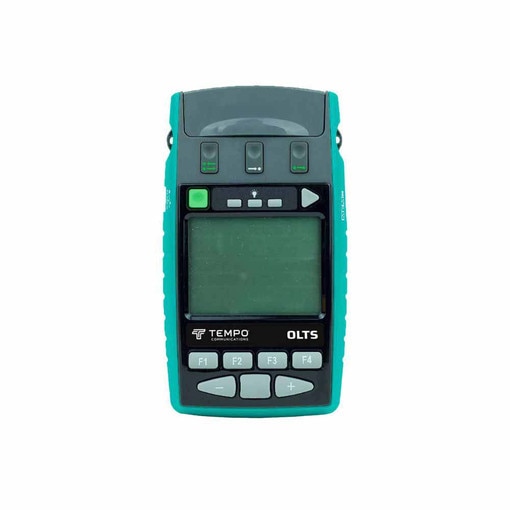

Tempo T27424LV-APC Quad MM & SM Two-Way Loss & Length Test Set
Details
INCLUDES:
• (1) SC/SC (OPT046) Hybrid Adaptors 1 per Port
• (1) SC/LC (OPT076) Hybrid Adaptors 1 per Port
• (1) SC/ST (OPT040) Hybrid Adaptors [only for T23400 & T27400 Series with LED Sources] 1 per Port
• (1) SC PC Terminator (OPT703) [only for T23400 Series]
• (1) SC APC Terminator (OPT704) [only for T23400 Series]
• (1) SC-SCAPC SMF Test Lead (OPT730-SCP-SCA) [only for T23400 Series with Laser Sources]
• (1) SC-SCAPC MMF Test Lead (OPT706) [only for T23400 Series with LED Sources]
• (1) SC-SC(APC) MMF Test Lead (OPT740-SCP-SCA) [only for T23400 Series with LED Sources at 50 µm]
• (1) Set 50 & 62.5 µm Fiber Mandrel Wrap Set for Multimode Sources (OPT701) [only for T23400 & T27400]
• (1) USB Cable (A-B Type)
FEATURES:
• (1) Carry Pouch
• (1) Wrist Strap
• (1) Operation Manual
• (1) Set QA Certificates
• (1) Set ILAC/ NATA Traceable Calibration Certificates Including Power Meter, Light Source, Two-Way Detector
• 25% of the size / weight, 7x the battery life of competitors
• Bidirectional Autotest loss & length testing on one fiber
• Real time Pass / Fail display
• 8,000 fiber memory and USB Flash Drive file dump
• KITS™ reporting software
• Autotest optical power meter, >25 ?, 1 % accuracy
• Traceable calibration reports: power meter & linearity, source ? & stability
• 80 hr alkaline battery life
SPECIFICATIONS:
• 3 Year warranty and calibration cycle
• EF compliant multimode sources
• Modulated Output (Source): 270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID Tones
• Output Wavelength (Source): Port 1: 1310, 1550 nm Laser APC / Port 3: 850, 1300 nm LED
• Output Power (Source): -7 dBm ±1 dB (@ 9/125 µm for 1310, 1550 m) / -27 dBm ±1 dB (@ 62.5/125 µm for 850, 1300 nm)
• Adjust Output Power (Source): Adjustable Over 7 dB in 0.01 dB Steps (for 1310, 1550 nm) / Fixed (for 850, 1300 nm)
• Wavelength Initial Tolerance @ 25 °C (Source): 20 nm (for 1310, 1550 nm)
• Short Term Stability for 15 min, Typical ±2 °C, After Warm Up, ORL < -25 dB (Source): 0.04 dB (for 1310, 1550 nm) / 0.01 dB (for 850, 1300 nm)
• Stability Over Temperature (Source): 0.6 dB (Max for 1310, 1550 nm) / 0.35 dB (Max for 850, 1300 nm)
• Spectrum Width @ FWHM (Source): 3 nm (Typical for 1310, 1550 nm)
• Wavelength Drift (Source): 0.4 nm per °C (Typical for 1310, 1550 nm) / 0.4 nm per °C (Typical for 850, 1300 nm)
• Mode Controlled (Source): 850, 1300 nm (50/125µm Compliant: IEC 61280-4-1 {Ed.1.0}, TIA 526-14A & TIA TSB-178)
• Reconnection Repeatability @ 95% Confidence (Source): 0.1 dB (for 1310, 1550 nm Laser) / 0.05 dB (for 850, 1300 nm LED)
• Length Range (2-Way Autotest Only): 27 dB (for 1310, 1550 nm) / 4.5 dB @ 62.5um (for 850, 1300 nm)
• Length Accuracy (2-Way Autotest Only): 0.01% ± 4 meters
• Length Resolutions: 1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~127.9 Km)
A Quad Two-Way Optical Loss Test set (OLTS) that’s perfect for medium to ultra high fiber count loss & length testing applications on both multimode fiber with a PC connector, and single mode fiber with an APC connector, at 850 / 1330nm & 1310/1550 nm. A pair of these compact SM & MM instruments set new standards of productivity, accuracy and ease of use. The 650 nm VFL VisiTester on the SM port mixes a VFL in with the test signal during SM Autotest. It operates as a stand-alone VFL, or gives positive visual identification of a fiber to be connected during MM loss testing. Each fiber needs just one test hook-up and one key press for a complete bidirectional insertion loss and length test, and the same test method is used for both multimode and single mode fiber, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto flexible standards-compliant Tier 1 certification reports. A pair of instruments both display bi-directional loss and length, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone light source & power meter, VFL or tone generator / detector.
