SKU: Tempo T27624-INGAAS

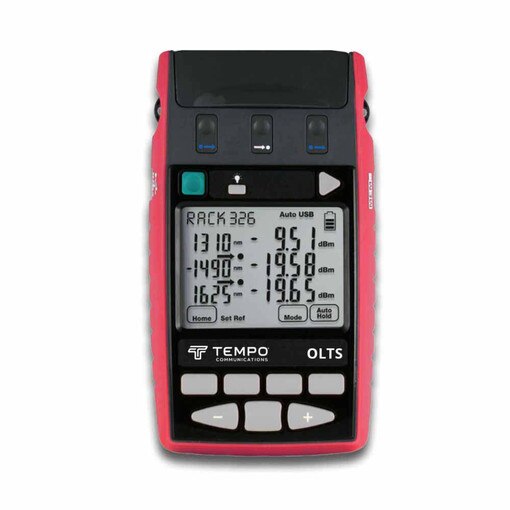

Tempo T27624-INGAAS Quad Optical Loss Test Set + Visitester
Details
INCLUDES:
• (1) SC Connector Adaptor (OPT046) 1 per Port
• (1) Set 50 & 62.5 µm Fiber Mandrel Wrap Set for Multimode Sources (OPT701)
• (1) USB-A to USB-Micro Type Cable
• (1) Carry Pouch
• (1) Carry Strap
• (1) Operation Manual
• (1) Set ILAC/ NATA Traceable Calibration Certificate
• (1) QA Certificate
• (1) TTS Reporting Software Download from Website for Free
FEATURES:
• Easy to use, slim, rugged & versatile
• EF compliant multimode sources
• Excellent source stability
• Large clear LCD is sunlight readable & backlit
• Large memory with Text Tag & time stamp
• One button memory dump to USB Flash Drive
• KITS™ reporting software for acquisition and reporting
• Autotest power meter 1 % accuracy & 31 calibrated ?
SPECIFICATIONS:
• Traceable calibration reports: power meter & linearity, source ? & stability
• Interchangeable connectors with dust cap & tilt bail
• Multi-Fiber ID Test tone generator / detector
• Long alkaline battery life with micro USB external power / charger
• Detector Type (Meter): InGaAs
• Response Wavelength (Meter): 600 ~ 1700 nm
• Calibration Wavelengths (Meter): 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm
• Power Range (Meter): +10 ~ -60 dBm (780 ~ 980 nm) / +10 ~ -70 dBm (1270 ~ 1650 nm)
• Mid-Range Linearity (Meter): 0.04 dB (Typical)
• Total Uncertainty (Meter) 0.3 dB (Max)
• ID Tone Detection & Autotest Sensitivity (Meter): Up to -50 dBm
• Modulated Output (Source): 270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID Tones
• Output Wavelength (Source): Port 1: 1310-1550 nm Laser, VisiTester / Port 3: 850, 1300 nm LED
• Output Power (Source): -3 dBm ±1 dB (@ 9/125 µm for 1310, 1550 m) / -20 dBm ±1 dB (@ 62.5/125 µm for 850, 1300 nm)
• Adjust Output Power (Source): Adjustable Over 7 dB in 0.01 dB Steps (for 1310, 1550 nm, VisiTester) / Fixed (for 850, 1300 nm)
• Wavelength Initial Tolerance @ 25 °C (Source): 20 nm (for 1310, 1550 nm)
• Short Term Stability for 15 min, Typical ±2 °C, After Warm Up, ORL < -25 dB (Source): 0.04 dB (for 1310, 1550 nm) / 0.01 dB (for 850, 1300 nm)
• Stability Over Temperature (Source): 0.6 dB (typical for 1310, 1550 nm) / 0.35 dB (Typical for 850, 1300 nm)
A Quad Optical Loss Test Set used to test power, insertion loss, continuity and faults on multimode and single mode fiber optic systems at 850 / 1300 nm & 1310 / 1550 nm. In a small package, it provides a powerful optical multi-meter style solution to improve test flexibility and productivity. The 650 nm VFL Visitester feature on the singlemode source port mixes a VFL in with the test signal during Autotest. In addition to operating as a typical VFL, it gives positive visual identification of a fiber to be connected for loss testing.
