SKU: Tempo T28010-APC

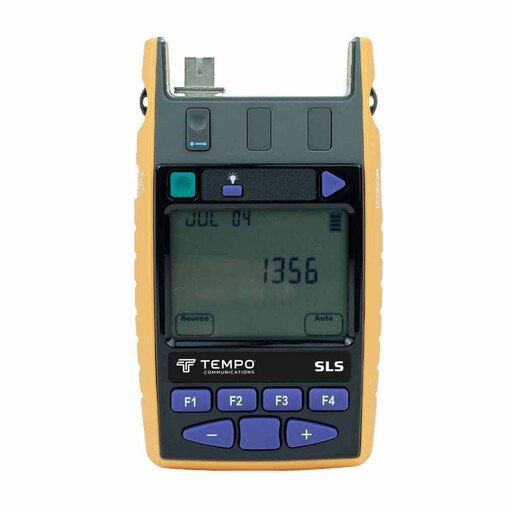

Tempo T28010-APC Triple Optical Laser Light Source
Details
INCLUDES:
• (1) SC Connector Adaptor (OPT046) 1 per Port
• (1) Operation Manual
• (1) QA Certificate
• (1) Set ILAC/ NATA Traceable Calibration Certificates
• (1) Carry Pouch
• (1) Carry Strap
• (1) 50 & 62.5 µm Fiber Mandrel Wrap Set for Multimode Sources (OPT701)
• (1) USB-A to USB-Micro Type Cable
FEATURES:
• Easy to use, rugged & versatile
• Long battery life, micro USB power/charger
• Interchangeable connectors with dust cap & tilt bail
• Superior re-connection repeatability, < 0.1 Db
• Excellent stability
• Autotest & Multi-Fiber ID Tone generator
• Full QA & test reports ISO/IEC 17025 traceable
SPECIFICATIONS:
• Output Wavelength: Port 1: 1310, 1550, 1625 nm Laser APC
• Output Power: -3 dBm ±1 dB (@ 9/125 µm)
• Adjust Output Power: Adjustable over 7 dB in 0.01 dB Steps
• Short Term Stability (for 15 min, Typical ±2 °C, After Warm Up, ORL < -25 dB): 0.04 dB (for 1310, 1550 nm) / 0.06 dB (for 1625 nm)
• Stability Over Temperature: 0.6 dB (Typical)
• Wavelength Initial Tolerance (@ 25 °C): 20 nm
• Spectrum Width (FWHM): 3 nm (Typical)
• Wavelength Drift: 0.4 nm per °C (Typical)
• Reconnection Repeatability (95% Confidence): 0.1 dB
• Calibration Validity (ISO/IEC 17025): 3 Years
• Modulated Output: 270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID Tones
• Autotest (Not Available for 470, 540 nm LED Sources): Compatible with KI Autotest Power Meter Port & Matching ?
• Power: Battery / External Power Via USB
• Battery Types: 2x AA (LR6) Alkaline / 2x AA NiMH AA (Rechargeable via USB)
This triple laser source is a general purpose test source for single mode systems with an APC connector, at 1310-1550-1625 nm. Typical applications include fiber optic attenuation measurement, polarity testing and fiber identification on critical systems.
