SKU: Tempo T6102AA-APC

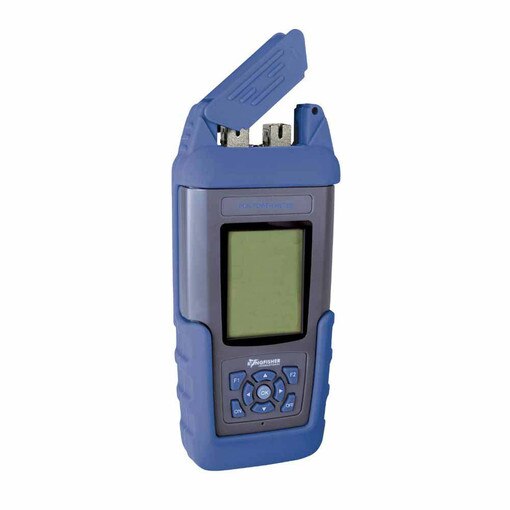

Tempo T6102AA-APC GPON/PON Power Meter
Details
INCLUDES:
• (1) SC/APC-SC/APC Test Cord
• (1) USB Cable (A-B[Mini] Type)
• (1) CD (Data Management Software & Manuals)
• (1) Cleaning Cotton Stick Pack
• (1) Soft Carry Pouch
• (1) User Manual
• (1) QA Certificate (ISO9001 Compliant)
FEATURES:
• Easy to use, compact, rugged & economical true PON / GPON tester
• Fast reading and settling time
• Sunlight-readable backlit display
• Pass/fail display and LEDs
• 1310 nm upstream, 1490/1550 nm downstream
• 18 hr from AA alkaline batteries & auto off
• 100 test memory & real-time clock
• PC software for downloading results & setting pass/fail
SPECIFICATIONS:
• 1-year warranty, 3-year calibration cycle
• Full QA report with ISO9001-compliant calibration
• Metal-free connectors: to avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.
• Runs on Alkaline Batteries
• Genuine 3-year calibration validity: genuine 3-year optical power meter re-calibration validity.
• Note: This instrument is designed to test PON transmission power. Alternatively, loss testing use requires a non-standard KI2000 series test source with specific CWDM-compliant lasers.
• Detector Type: InGaAs
• Passband: Upstream: 1310 nm (FWHM: 1260 ~ 1360), Downstream: 1490 nm (FWHM: 1470 ~ 1505) & 1550 nm (FWHM: 1535 ~ 1570)
• Power Range: -40 ~ +10 dBm (@ 1310 nm) / -45~ +10 dBm (@ 1490 nm) / -45 ~ +23 dBm (@ 1550 nm)
• Damage Level (dBm): +10 dBm (@ 1310 nm) / +10 dBm (@ 1490 nm) / +23 dBm (@ 1550 nm)
• Isolation Between Wavelengths: > 40 dB
• Uncertainty: 0.5 dB (Max)
• Linearity: 0.1 dB
• Polarization Loss: < 0.25 dB
• Insertion Loss: < 1.5 dB
• Return Loss: 50 dB
• Display Size: 44 mm x 57 mm
• Show Results: dBm / W / dB, pass / fail
• Display Resolution: 0.01 dB
• Memory: 99 Records of 3-Wavelength Test
An economical, in-line PON meter used during FTTH / PON service turn-up or maintenance, to perform a live optical power test with optical loss test (OLT) equipment.
