SKU: Tempo T6106-APC

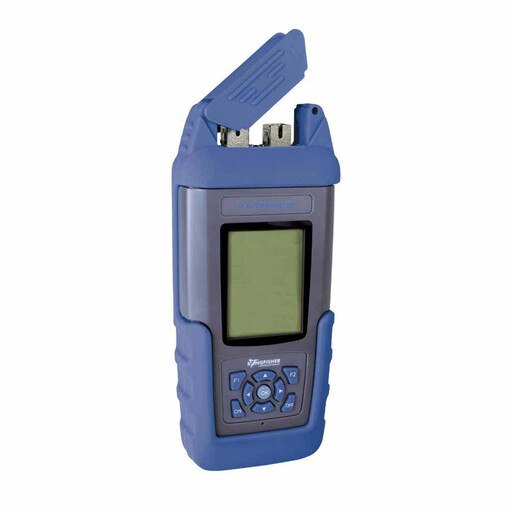

Tempo T6106-APC 10G/XG PON Power Meter
Details
INCLUDES:
• (1) Power Supply/Charger with US Style Plug
• (1) SC/APC-SC/APC Test Cord
• (1) USB Cable (A-B[Mini] Type)
• (1) CD (Data Management Software & Manuals)
• (1) Cleaning Cotton Stick Pack
• (1) Soft Carry Pouch
• (1) User Manual
• (1) QA Certificate (ISO9001 Compliant)
FEATURES:
• Easy to use, compact, rugged & economical true PON meter
• Fast reading and settling time
• Sunlight-readable backlit display
• Pass / fail display
• 1270 & 1310 nm upstream, 1490 & 1577 nm downstream
• 10 hr from built-in Lithium battery & auto-off
• 100 test memory & real-time clock
• PC software for downloading results & setting pass / fail
SPECIFICATIONS:
• 1-year warranty, 3-year calibration cycle
• Full QA report with ISO9001 compliant calibration
• Metal-free connectors: to avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.
• Genuine 3-year Calibration Validity: genuine 3 year optical power meter recalibration validity.
• Note: This instrument is designed to test PON transmission power. Alternatively, for loss testing use, it requires a non-standard KI2000 series test source with specific CWDM compliant lasers.
• Detector Type: InGaAs
• Passband: Upstream: 1270 nm (FWHM: 1260?1280) & 1310 nm (FWHM: 1290?1330), Downstream: 1490 nm (FWHM: 1470?1505) & 1577 nm (FWHM: 1570 ~1585)
• Power Range: -30 ? 10 dBm (@ 1270 & 1310 nm) / -45 ? 10 dBm (@ 1490 & 1577 nm)
• Damage Level: > 10 dBm
• Isolation Between Wavelengths: Up to 40 dB
• Uncertainty: 0.5 dB (Max)
• Linearity: 0.1 dB
• Polarization loss: < 0.25 Db
• Insertion Loss: < 1.5 dB
• Return loss: 50 dB
• Display Size: 44 mm x 57 mm
• Show Results: dBm / W / dB, pass / fail
• Display Resolution: 0.01 dB
• Memory: 99 Records of 4 Wavelengths Test
An economical, in-line PON meter used during 10G FTTH / PON service turn-up or maintenance, to perform a live test with the OLT equipment.
