SKU: Tempo T9600A

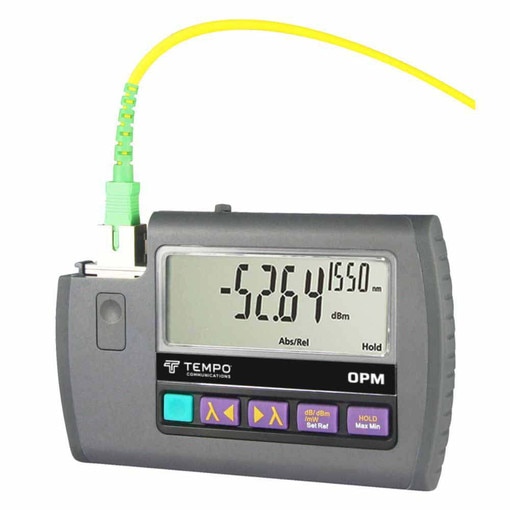

Tempo T9600A Pocket Fiber Optic Power Meter
Details
INCLUDES:
• (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC (OPT046)
• (1) Carry Pouch (OPT156)
• (1) Wrist Strap
• (1) ILAC/ NATA Traceable Certificate
• (1) QA Certificate
• (1) Quick Guide
• (1) KITS™ Recording/Reporting Software (Download from Website for Free)
FEATURES:
• 8 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
• Small size, easy to use, rugged & reliable
• dBm / dB / linear, 0.01 dB resolution
• Display hold & max/min recording
• Tone detector with Multi-Fiber ID
• Easy to use TamperLock mode
• Interchangeable connectors
• Full QA reports
SPECIFICATIONS:
• Detector Type: InGaAs
• Response Wavelength: 600 ~ 1700 nm
• Calibration Wavelengths: 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm
• Power Range: +5 ~ -60 dBm
• Mid-Range Linearity: 0.04 dB (Typical)
• Total Uncertainty: 0.3 dB (Max)
• Wavelength Sensitivity (± 30 nm): 0.02 dB (Typical)
• ID Tone Detection Sensitivity: Up -50 dBm
• Accuracy: ±2 %
• Calibration Validity: 3 Years (ISO/IEC 17025)
• Resolution: 0.01 dB
• Polarization Sensitivity: < 0.05 dB (Typical)
• Tone Detection: 200 ~ 2500 Hz ± 2 %
• Power: 2 x AAA (LR-03) Alkaline
General power meter for Multimode and Singlemode applications (Single fiber). A simple and reliable optical power meter for testing power and loss on typical multimode & single mode fiber optic systems. It provides high accuracy and simplicity of use.
• (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC (OPT046)
• (1) Carry Pouch (OPT156)
• (1) Wrist Strap
• (1) ILAC/ NATA Traceable Certificate
• (1) QA Certificate
• (1) Quick Guide
• (1) KITS™ Recording/Reporting Software (Download from Website for Free)
FEATURES:
• 8 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
• Small size, easy to use, rugged & reliable
• dBm / dB / linear, 0.01 dB resolution
• Display hold & max/min recording
• Tone detector with Multi-Fiber ID
• Easy to use TamperLock mode
• Interchangeable connectors
• Full QA reports
SPECIFICATIONS:
• Detector Type: InGaAs
• Response Wavelength: 600 ~ 1700 nm
• Calibration Wavelengths: 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm
• Power Range: +5 ~ -60 dBm
• Mid-Range Linearity: 0.04 dB (Typical)
• Total Uncertainty: 0.3 dB (Max)
• Wavelength Sensitivity (± 30 nm): 0.02 dB (Typical)
• ID Tone Detection Sensitivity: Up -50 dBm
• Accuracy: ±2 %
• Calibration Validity: 3 Years (ISO/IEC 17025)
• Resolution: 0.01 dB
• Polarization Sensitivity: < 0.05 dB (Typical)
• Tone Detection: 200 ~ 2500 Hz ± 2 %
• Power: 2 x AAA (LR-03) Alkaline
General power meter for Multimode and Singlemode applications (Single fiber). A simple and reliable optical power meter for testing power and loss on typical multimode & single mode fiber optic systems. It provides high accuracy and simplicity of use.
