SKU: Tempo T9600XL-GE5

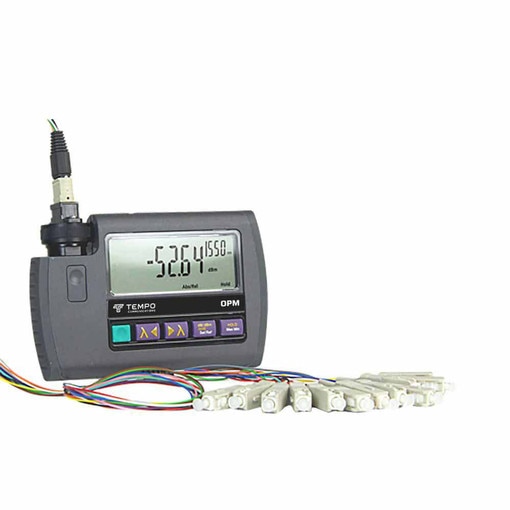

Tempo T9600XL-GE5 Pocket Optical Power Meter, GE 5mm
Details
INCLUDES:
• (1) Connector Adaptor XL 7/8-28, MTP / MPO 12 x n (OPT227)
• (1) Connector Adaptor XL 7/8-28, MTP / MPO 16 x n (OPT228)
• (1) Operating Manual
• (1) Set ILAC/ NATA Traceable Calibration Certificate
• (1) Soft Carry Pouch
• (1) Wrist Strap
• (1) Quick Guide
• (1) QA Certificate
• (1) KITS™ Recording/Reporting Software (Download from Website for Free)
FEATURES:
• 12 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
• Small size, easy to use, rugged & reliable
• dBm / dB / linear, 0.01 dB resolution
• Display hold & max/min recording
• Tone detector with Multi-Fiber ID
• Large area detector for MPO applications
• Easy to use TamperLock mode
• Interchangeable connectors
SPECIFICATIONS:
• Full QA reports
• Detector Type: GE (5 mm)
• Response Wavelength: 600 ~ 1650 nm
• Calibration Wavelengths: 660, 780, 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm
• Power Range: +10 ~ -30 dBm (for 660,780,1610,1625 nm) / +10 ~ -40 dBm (for 850,1300,1310,1390,1490,1550 nm)
• Mid-Range Linearity: 0.06 dB (Typical)
• Total Uncertainty: 0.5 dB (Max)
• Wavelength Sensitivity: (± 30 nm) 0.04 dB (Typical)
• Response Uniformity Across Detector: 2 % (0.09 dB)
• ID Tone Detection Sensitivity: -37 dBm
• Accuracy: ±2 %
• Calibration Validity: 3 Years (ISO/IEC 17025)
• Resolution: 0.01 dB
• Polarization Sensitivity: < 0.05 dB (Typical)
• Tone Detection: 200 ~ 2500 Hz ± 2 %
A simple and reliable optical power meter with a large area 5 mm Ge detector for testing power and loss on fiber optic systems or free-space light beams up to +10 dBm. Ideal for: Plastic fiber, PCS, single mode, multimode, multi-fiber ribbon cable such as MMC, MPO 12 – 72 fiber up to 12 fibers wide, and LC/ SC etc fiber optic systems. This versatile meter is a popular MPO tester, providing high accuracy and simplicity of use. For all fiber optic Ethernet & Infiniband applications except 16 x 1 or 16 x 2 ribbon types. Optional connector adapter not included, order separately.
