SKU: Tempo T9600XL-SI5

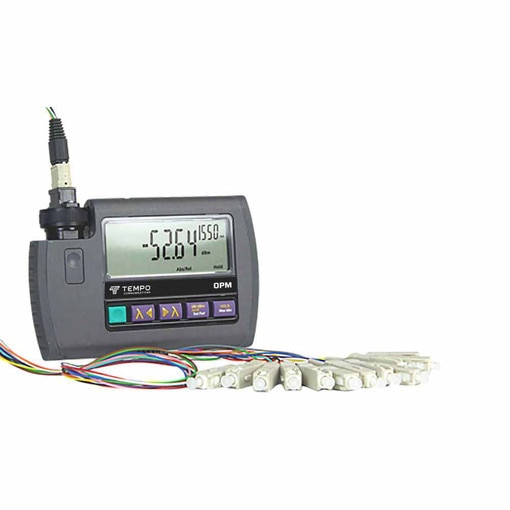

Tempo T9600XL-SI5 Pocket Optical Power Meter, SI 5mm
Details
INCLUDES:
• (1) Operating Manual
• (1) Set ILAC/ NATA Traceable Calibration Certificate
• (1) Soft Carry Pouch
• (1) Wrist Strap
• (1) Quick Guide
• (1) QA Certificate
• (1) KITS™ Recording/Reporting Software (Download from Website for Free)
FEATURES:
• 9 calibration ?, ±2% accuracy, ISO/IEC 17025 traceable
• Small size, easy to use, rugged & reliable
• dBm / dB / linear, 0.01 dB resolution
• Display hold & max/min recording
• Tone detector with Multi-Fiber ID
• Easy to use TamperLock mode
• Interchangeable optical connectors
• Full QA reports
SPECIFICATIONS:
• Detector Type: Si (5 mm)
• Response Wavelength: 350 ~ 1100 nm
• Calibration Wavelengths: 470, 520, 635, 650, 660, 780, 820, 850, 980 nm
• Power Range: +5 ~ -50 dBm ( for 470, 520 nm) / +5 ~ -60 dBm (for 635 ~ 980 nm)
• Mid-Range Linearity: 0.04 dB (Typical)
• Wavelength Sensitivity (± 30 nm): 0.2 dB (Typical)
• Response Uniformity Across Detector: 1% (0.06 dB)
• ID Tone Detection Sensitivity: -45 dBm
• Calibration Accuracy: ±2 % (0.09 dB)
• Calibration Validity: 3 Years (ISO/IEC 17025)
• Resolution: 0.01 dB
• Polarization Sensitivity: < 0.05 dB (Typical)
• Tone Detection: 200 ~ 2500 Hz ± 2 %
• Power: 2 x AAA (LR-03) Alkaline
A simple and reliable free space or optical fiber light meter tester with a large-area 5 mm Silicon detector. It is ideal for testing power & loss on fiber optic systems or free-space light beams up to +5 dBm. Ideal for: plastic fiber, PCS, multimode, multi-fiber ribbon cable such as MMC, MPO 12 – 72 fiber up to 12 fibers wide, and LC/ SC etc fiber optic systems. It provides high accuracy & simplicity of use. For multimode fiber Ethernet and InfiniBand applications excluding 16 x 1 or 16 x 2 ribbon types. Optional connector adapter not included, order separately.
