SKU: Tempo T9809AM

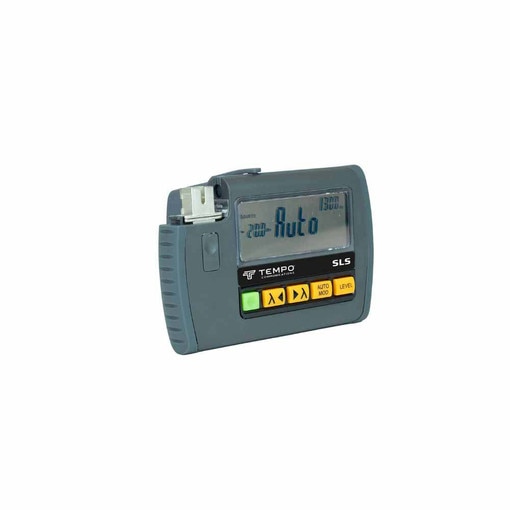

Tempo T9809AM Pocket Fiber Optic POF Test Source
Details
INCLUDES:
• (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC
• (1) 50 & 62.5 µm Fiber Mandrel Wraps Set (OPT701) for MM LED & 850 nm VCSEL Sources
• (1) Quick Guide
• (1) Soft Carry Pouch (OPT156)
• (1) Wrist Strap
• (1) QA Certificate
FEATURES:
• Interchangeable Connector Adaptors: Use a single tester for - SC, LC, MPO, FC, HFBR, and other connectors - including universal and duplex options.
• Test Tone with Multi-Fiber ID - Send and identify one of 12 unique test tones. Great for quickly verifying continuity, polarity, and rack labeling.
• One-Touch Auto Test - Smart communication makes sure you always get a full, complete, and consistent test result.
• Metal-free Connectors - To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.
• Mutli-mode Test Standard Compliance - Kingfisher LED sources meet Encircled Flux and CPR requirements straight out of the box.
• TamperLock Mode - Lock-down user controls and configuration to reduce the risk of test failure.
• SC/LC Duplex Support - Use our universal interchangeble connector options for duplex testing.
• Runs on alkaline batteries.
SPECIFICATIONS:
• Output Wavelength: 660 nm LED
• Output Power (Fixed): -6 dBm ±1 dB (@ 1 mm POF) / -13 dBm ±2 dB (@ 200 µm PCF)
• Short Term Stability (for 15 min, Typical, ±2 °C, After Warm-Up): 0.01 dB
• Stability Over Temperature: 0.35 dB (Typical)
• Wavelength Initial Tolerance (@ 25 °C): 15 nm
• Spectrum Width (FWHM): 25 nm (Typical)
• Blinking Output: 2 Hz
• Calibration Validity (ISO/IEC 17025): 3 Years
• Modulation: 270 Hz, 1 kHz, 2 kHz ±2 %
• Multi-Fiber ID: 12 Fibers
• Autotest: Compatible with KI Autotest Power Meter Port & Matching ?
• Power: 2 x AAA (LR-03) Alkaline
• Battery Life: Laser/LED Source: 40/35 hours (Typical) in Autotest
• Auto Off: Selectable
A shirt-pocket size fiber optic source ideal for general testing of PCS or POF systems at 660 nm. It provides, high test accuracy and simplicity of use. A variety of POF specific connector adapters are available for most POF connector styles.
