SKU: Tempo T9812A

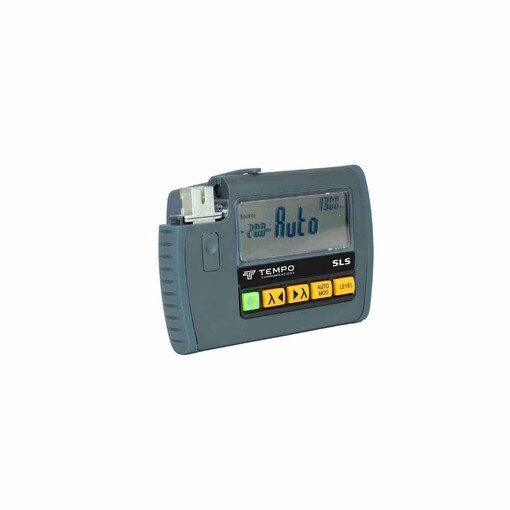

Tempo T9812A Pocket Fiber Optic LED Test Source
Details
INCLUDES:
• (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC
• (1) 50 & 62.5 µm Fiber Mandrel Wraps Set (OPT701) for MM LED & 850 nm VCSEL Sources
• (1) Quick Guide
• (1) Soft Carry Pouch (OPT156)
• (1) Wrist Strap
• (1) QA Certificate
FEATURES:
• Encircled Flux compliant modal distribution
• Rugged, drop-resistant construction
• User defeatable auto turn-off
• Excellent stability
• Lanyard, shirt pocket clip & padded pouch
• Tone generator & Multi-Fiber ID function
• Easy use TamperLock mode
• Compatible with Autotest power meters
SPECIFICATIONS:
• Interchangeable connectors
• Full QA reports with ISO9001 compliant calibration
• Output Wavelength: 850-1300 nm LED
• Output Power (Fixed): -20 dBm ±1 dB (@ 62.5/125 µm) / -22.5 dBm (@ 50/125 µm) / -32 dBm (@ 9.5/125 µm)
• Short Term Stability (for 15 min, Typical ±2 °C, After Warm-Up): 0.01 dB
• Stability Over Temperature: 0.35 dB (Typical)
• Wavelength Drift: 0.4 dB (Typical)
• Mode Controlled: Mode Distribution @ 50/125 µm is Compliant with the Following Standards: IEC 61280-4-1 {Ed.1.0}, TIA/EIA 526-14A and TIA TSB-178.
• Reconnection Repeatability (95% Confidence): 0.05 dB
• Calibration Validity (ISO/IEC 17025): 3 Years
• Modulation: 270 Hz, 1 kHz, 2 kHz ±2 %
• Multi-Fiber ID: 12 Fibers
• Autotest: Compatible with KI Autotest Power Meter Port & Matching ?
• Power: 2 x AAA (LR-03) Alkaline
• Battery Life: Laser/LED Source: 40/35 hours (Typical) in Autotest
• Auto Off: Selectable
A shirt-pocket size LED fiber source ideal for general testing of multimode, PCS or POF systems at 850 and 1300 nm. It provides, high accuracy and simplicity of use. It can also achieve useful short-range testing on singlemode systems at 1300 nm, since it has a specified output level into SMF.
