SKU: Tempo T9822A

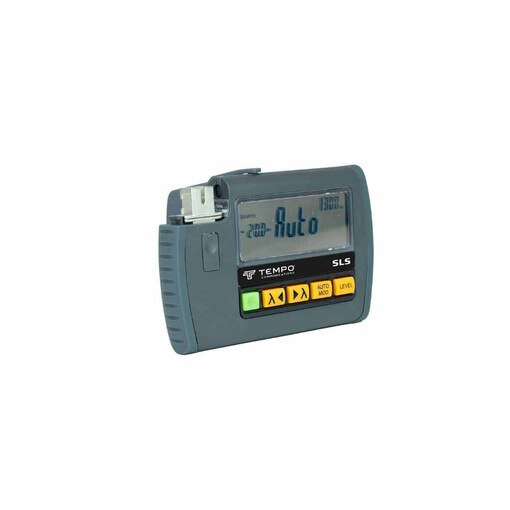

Tempo T9822A Pocket Fiber Optic Laser Test Source
Details
INCLUDES:
• (1) Option, Hybrid Adaptor, Ceramic Sleeve, SC/SC
• (1) 50 & 62.5 µm Fiber Mandrel Wraps Set (OPT701) for MM LED & 850 nm VCSEL Sources
• (1) Quick Guide
• (1) Soft Carry Pouch (OPT156)
• (1) Wrist Strap
• (1) QA Certificate
FEATURES:
• Rugged, drop-resistant construction
• User defeatable auto turn-off
• Excellent stable lasers
• Lanyard, shirt pocket clip & padded pouch
• Tone generator & Multi-Fiber ID function
• Easy use TamperLock mode
• Compatible with Autotest power meters
• Interchangeable connectors
SPECIFICATIONS:
• Full QA reports with ISO9001 compliant calibration
• Output Wavelength: 1310, 1550 nm Laser
• Output Power (@ 9/125 µm, Adjustable Over 3 dB in 0.1 dB Steps): 0 dBm ±1 dB
• Short Term Stability (for 15 min, Typical ±2 °C, After Warm-Up, @ ORL < -25 dB): 0.04 dB
• Stability Over Temperature: 0.6 dB (Typical)
• Wavelength Initial Tolerance (@ 25 °C): 20 nm
• Spectrum Width (FWHM): 3 nm (Typical)
• Wavelength Drift: 0.4 nm /°C (Typical)
• Reconnection Repeatability (95% Confidence): 0.1 dB
• Calibration Validity (ISO/IEC 17025): 3 Years
• Modulation: 270 Hz, 1 kHz, 2 kHz ±2 %
• Multi-Fiber ID: 12 Fibers
• Autotest: Compatible with KI Autotest Power Meter Port & Matching ?
• Power: 2 x AAA (LR-03) Alkaline
• Battery Life: Laser/LED Source: 40/35 hours (Typical) in Autotest
A shirt-pocket size fiber optic laser light source ideal for general testing of single mode systems at 1310 and 1550 nm. It provides, high accuracy and simplicity of use.
