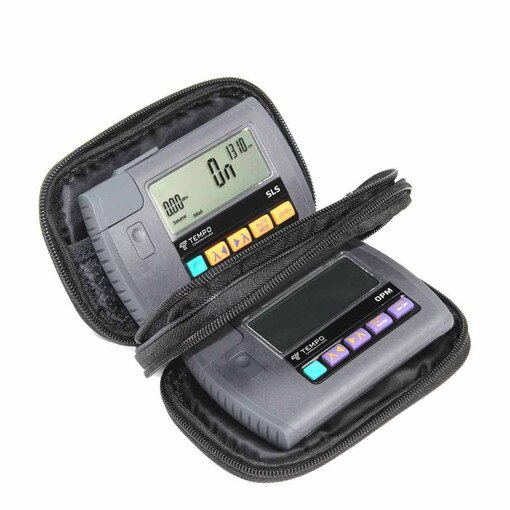

Tempo TK038 Simple Test Kit, SM Mm

INCLUDES:
• (1) Fiber Optic Laser Test Source T9822A
• (1) Fiber Optic LED Test Source T9812A
• (1) Pocket Fiber Optic Power Meter T9600A
• (1) Canvas Carrying Pouch

FEATURES:
• Optical power at 8 calibrated ?, -60 to +10 dBm range.
• Optical loss on SM fiber at 1310 / 1550 nm, 60 dB range.
• Optical loss on MM fiber 850 / 1300 nm 40 dB (@ 62.5um) range, EF compliant.
• Reporting software for cable loss (manual data entry).
• Optical continuity / tone checking, 12 Multi-Fiber ID fiber, 40 dB range.
• Generally meets safety regulations & standards based test procedures.
• SC interchangeable connector adapters.
• Meter accepts PC & APC polish. Source accepts PC polish.

SPECIFICATIONS:
• Meter 2 x AAA alkaline. Run time >300 hours.
• Source 2 x AAA alkaline. Run time >35 hours.
• Detector Type: InGaAs
• Response Wavelength: 600 ~ 1700 nm
• Calibration Wavelengths: 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm
• Power Range: +5 ~ -60 dBm
• Mid-Range Linearity: 0.04 dB (Typical)
• Total Uncertainty: 0.3 dB (Max)
• Wavelength Sensitivity (± 30 nm): 0.03 dB (Typical)
• ID Tone Detection Sensitivity: Up -50 dBm


A simple fiber optic tester kit, for low to modest test volume on single mode and multimode fiber optic systems
