SKU: Tempo TK076
Tempo TK076 Advanced Test Kit, SM MM
Details

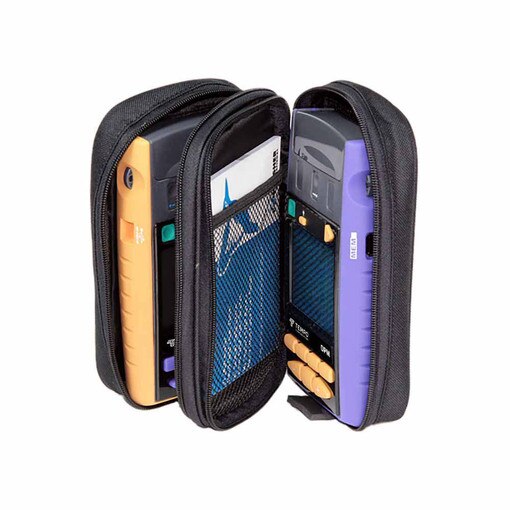

INCLUDES:
• (1) LED & Laser Quad Optical Test Source T2824
• (1) Handheld Optical Power Meter T2600
• (1) Padded Canvas Carry Pouch OPT149
FEATURES:
• Optical power at 25 calibrated wavelengths, -60 to +15 dBm range.
• Optical loss on SM fiber 1310 / 1550 nm, 60 dB range.
• Optical loss on MM fiber 850 / 1300 nm, 40 dB (@ 62.5um) range, EF compliant.
• Loss testing automation & reporting with AutoTest and KITS™ software.
• Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 50 dB range.
• Generally meets safety regulations & standards based test procedures.
• SC interchangeable connector adapters.
• Meter accepts PC & APC polish. Source accepts PC polish.
SPECIFICATIONS:
• Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
• Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
• Detector Type: InGaAs
• Calibration Accuracy: 1% (0.06 dB)
• Response Wavelength: 600 ~ 1700 nm
• Calibration Wavelengths: 780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm
• Power Range: +10 ~ -60 dBm (for 780 ~ 980 nm) / +10 ~ -70 dBm (for 1270 ~ 1650 nm)
• Mid-Range Linearity: 0.04 dB (Typical)
• Total Uncertainty: 0.3 dB (Max)
• Wavelength Sensitivity (± 30 nm): 0.03 dB (Typical)
• ID Tone Detection & Autotest Sensitivity: Up to -50 dBm
A fiber testing kit with an optical power meter and light source, effective for low to medium test volume on single mode & multimode systems.
