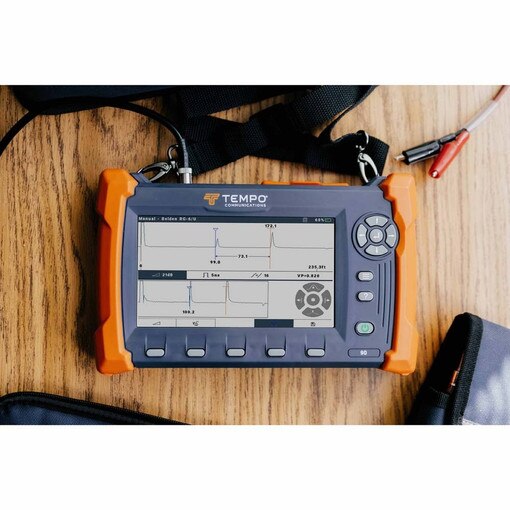

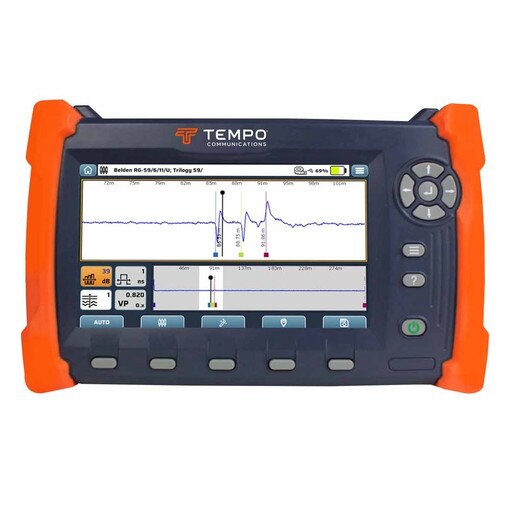

Tempo TV220E Time-Domain Reflectometer Cable Tester For CATV

INCLUDES:
• (1) CATV Cable Tester

FEATURES:
• Compact, lightweight & rugged design
• 7” full-color, high resolution, sunlight readable, touchscreen with “multi-touch”
• Push-button controls allow for gloves and dirty environments
• Improved UI for rapid, intuitive testing
• TestWizard & automatic event detector with configurable event thresholds
• Advanced analysis modes: Test, Intermittent. Test vs. Saved, Saved and Difference etc

SPECIFICATIONS:
• Maximum range: 5.58 km (Vp=0.93)
• Basic Accuracy: ±0.01% ±300ps
• Horizontal Resolution (ns): 0.05 to 20 ns (varies with range)
• Display resolution: 1024 x 600 full colour capacitive touchscreen (up to 800 nits bright backlight)
• Push-button User Interface: 13 mechanical keys, operable with gloves
• Input Protection: 400 V peak
• Output Pulse Amplitude: 4V to 6V
• Output Impedance: 75Ω
• Pulse Widths: 1, 5, 25, 125, 250, 500 ns.
• Pulse Shapes: Raised Cosine (1, 5, 25 ns), Digital (125, 250, 500 ns)
• Velocity Factor (Vp): Range: 0.300 to 1.000 (numeric factor, %, metres per microsecond or feet per microsecond)
• Event Markers: >6 Connection F-connector with replaceable coupler
• Test Modes: Standard Test; Intermittent Fault Detection; Test vs. Saved, Test vs. Saved and Difference
• Report Storage: >100 traces
• Report Writing Application: Tempo Report Writer for PC (Android and iOS in development)
• Size: TV220E, 27 x 16 x 5 cm, (10.3 x 6.4 x 2.2 in) TV220EX 32 x 23 x 11 cm (12.6 x 9 x 4.3 in)
• Weight: TV220E 1200g, (2.6 lbs) TV220EX 2109g, (4.6 lbs) excluding accessories
• Battery: Four cell, Lithium-ion, 60Wh
• Battery Run Time: >8 hours at typical backlight brightness

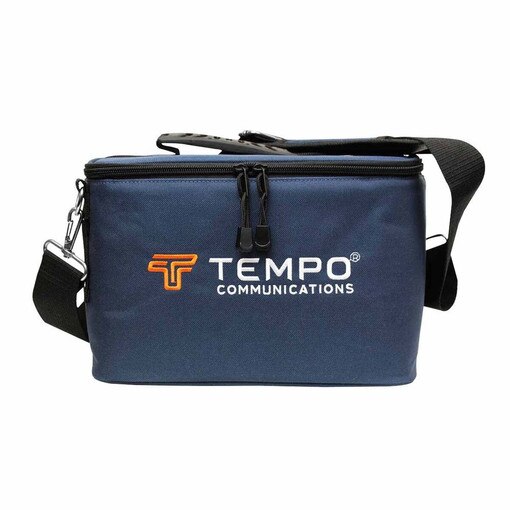

The EXTREME cable technician’s TDR: Takes all the features of the new TV220E and places this inside a rugged IP67 weathertight carry case. With enough space to store your patch cord and other accessories within the case, this makes CableScout TV220EX very versatile.
