SKU: Werner D6228-3

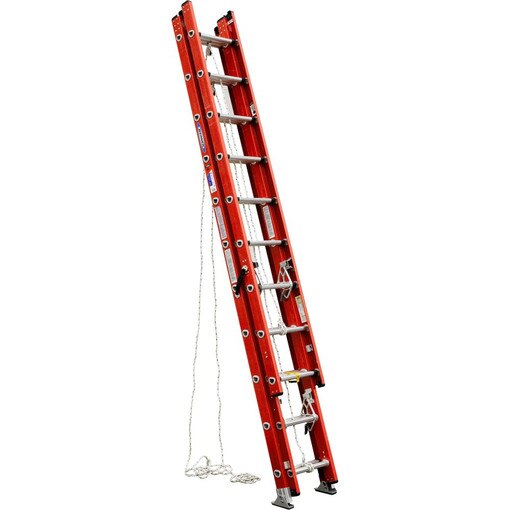

Werner D6228-3 28ft Type IA Fiberglass D-Rung Extension Ladder
Details
INCLUDES:
• (1) 28ft Type IA Fiberglass D-Rung Extension Ladder
FEATURES:
• Compact 3 section design is 11ft 4in when closed. Conventional 28ft extension ladder is 14ft 3in when closed.
• Exclusive ALFLO® rung joint means TWIST-PROOF® performance

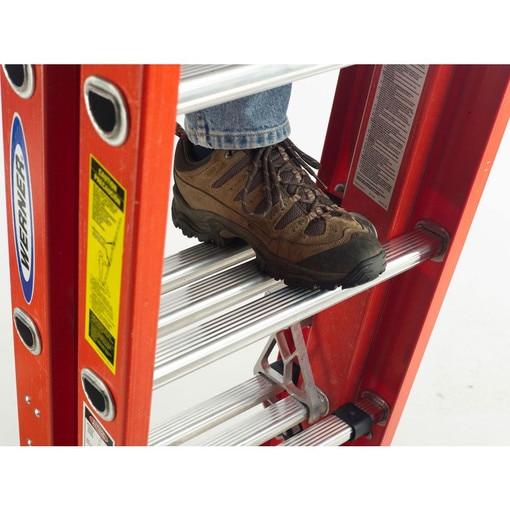

• 1-5/8in slip-resistant TRACTION-TRED® D-rungs
• Interlocking side rails with internal rail guides on bottom of fly section securely connect rails
• 1-5/8in slip-resistant TRACTION-TRED® D-rungs

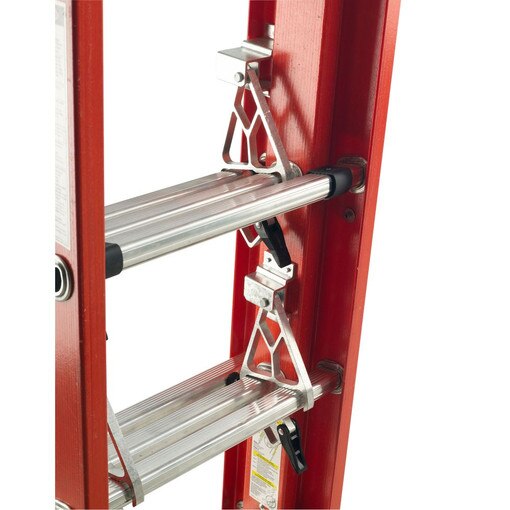

• Heavy duty extruded rung locks are spring loaded to operate smoothly
• Combination rail shield bracket and shoe with SHU-LOK® and slip-resistant pad
• Molded rung braces on bottom step for increases durability
• Molded rung braces on bottom step for increases durability
• Ladder is considered 31ft by ANSI Standards:
• Ladder extends to 25ft working height, same as D6228-2
• 2 rope system with smooth operating pulley and polyester rope
SPECIFICATIONS:
• Extension Ladders
• Size: 28 ft
• Max. Safe Working Height: 25 ft
• Max. Open Extended Length: 25 ft
• Style: Multi Section
• Load Capacity: 300 lbs
• Duty Rating: Type IA
• Material: Fiberglass
• Rung Type: D-Rung
• Foot Material: Slip-resistant pad
• Number of Sections: 3
• Base Width: 18-3/4 in outside shoes
• Certifications: ANSI A14.5 (2007); OSHA
• Approx. Closed Length: 11 ft
• Reach Height: 27 ft
• Approx. Cu. Ft. Per Unit: 15
• Rails Dimension: 3-5/16 in
• Flange Dimension: 1-3/16 in
• Rung Dimension: 1-5/8 in
• Fly Width: 17-3/4 in

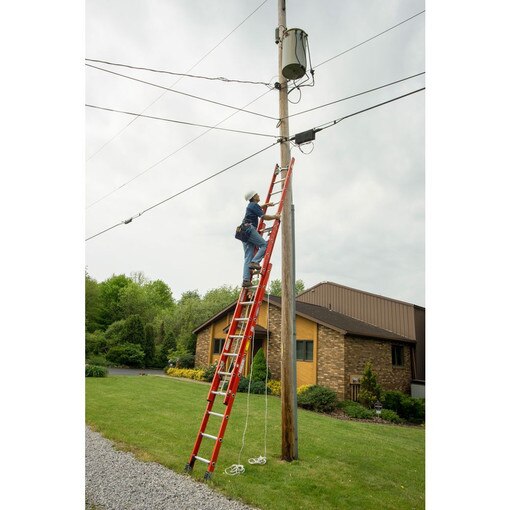

The D6228-3 Fiberglass Three-Section 28ft Extension Ladder has non-conductive rails making this ladder ideal for working near electricity. With a Duty Rating of 300lb, the ladder is durable and long lasting. The exclusive ALFLO® rung joint means TWIST-PROOF® performance on the job. The TRACTION-TRED® D rungs are slip resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The base and fly sections separate easily to use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail. The fly section rails are pre-pierced at the top for easy field installation of accessories.
