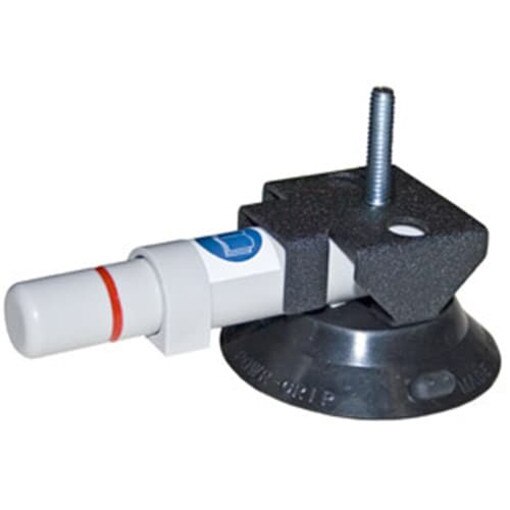

Wood's Powr-Grip 91153 TL3AMB1420T114L 3" Vacuum Cup W Acc Mount 1/4-20 X 1-1/4" Stud

FEATURES:
•Metal accessory mount with threaded stud for attaching equipment.
•Studs available in various lengths.
•Provides a reliable, temporary vacuum mount, without drilling holes.
•Rubber vacuum pad will not mark or damage most surfaces.
•Attaches to flat or curved, smooth, nonporous surfaces.
•Red-line indicator warns user of any vacuum loss.
•Check valve allows repumping without loss of remaining vacuum.
•Lift tabs on vacuum pad edges permit instant release.
•Supplied with vacuum pad protector.

SPECIFICATIONS:
•Vacuum Pad: Concave, 3" [8 cm] diameter (model TL3)
•Minimum Radius for Curved Mounting Surface: 4" [102 mm]
•Height to Mounting Platform (does not include stud): 1-27/64" [36 mm] on flat surfaces;
•1-11/16" [43 mm] on surfaces with maximum curvature.
•Load Capacity: 15 lbs [7 kg] per vacuum cup
•Variations:
•TL3PWP: black mount with 1/4-20 thread x 5/8" length stud and Powr-Press vacuum hold-down accessory
•TL3AMB1420T38L: black mount with 1/4-20 thread x 3/8" length stud
•TL3AMB1420T58L: black mount with 1/4-20 thread x 5/8" length stud
•TL3AMBNS: black mount with no stud
