SKU: Wood's Powr-Grip 91360

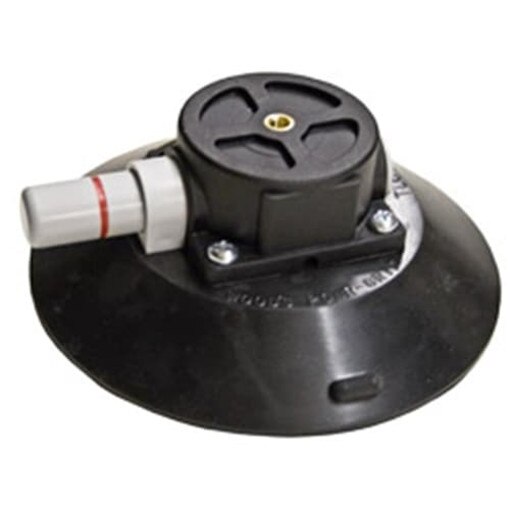

Wood's Powr-Grip 91360 TL6AMC1420T 6" Vacuum Cup W Black Zytel Acc Mount 1/4-20 Ins
Details
FEATURES:
• Black aluminum accessory mount with threaded stud or tap for attaching equipment.
• Compatible with Flexible Arms and other mounting accessories by RAM® Mounts.
• Studs available in various lengths and threads, including metric sizes.
• Provides a reliable, temporary vacuum mount, without drilling holes.
• Rubber vacuum pad will not mark or damage most surfaces.
• Attaches to flat or curved, smooth, nonporous surfaces.
• Red-line indicator warns user of any vacuum loss.
• Check valve allows repumping without loss of remaining vacuum.
• Lift tabs on vacuum pad edges permit instant release.
• Supplied with vacuum pad protector.
SPECIFICATIONS:
• Vacuum Pad: Concave, 6" [15 cm] diameter (model TL6)
• Minimum Radius for Curved Mounting Surface: 12" [305 mm]
• Height to Mounting Platform (does not include stud): 1-21/32" [42 mm] on flat surfaces;
• 2-1/32" [52 mm] on surfaces with maximum curvature.
• Load Capacity: 70 lbs [32 kg] per vacuum cup
• Black aluminum accessory mount with threaded stud or tap for attaching equipment.
• Compatible with Flexible Arms and other mounting accessories by RAM® Mounts.
• Studs available in various lengths and threads, including metric sizes.
• Provides a reliable, temporary vacuum mount, without drilling holes.
• Rubber vacuum pad will not mark or damage most surfaces.
• Attaches to flat or curved, smooth, nonporous surfaces.
• Red-line indicator warns user of any vacuum loss.
• Check valve allows repumping without loss of remaining vacuum.
• Lift tabs on vacuum pad edges permit instant release.
• Supplied with vacuum pad protector.
SPECIFICATIONS:
• Vacuum Pad: Concave, 6" [15 cm] diameter (model TL6)
• Minimum Radius for Curved Mounting Surface: 12" [305 mm]
• Height to Mounting Platform (does not include stud): 1-21/32" [42 mm] on flat surfaces;
• 2-1/32" [52 mm] on surfaces with maximum curvature.
• Load Capacity: 70 lbs [32 kg] per vacuum cup
